Hubbell HBL5461R SGL Receptacle, IND GRD, 20A 250V, 6-20R, RED

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5461R | Codale Part # 3454542
$19.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Red, Single Pack

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
PBT,PBT
Conductor Size
14-12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
Top: UL 94V-2, Base: UL 94V-0
Grade
Industrial
Grounding
Grounding
Horsepower
2 hp
Material
Composite
Mounting Type
Screw
NEMA
6-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Heavy Duty
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
12-10 horse power

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Receptacles

General Product Info

12-Digit UPC
783585148786
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358514878
Weight
0.15 lb

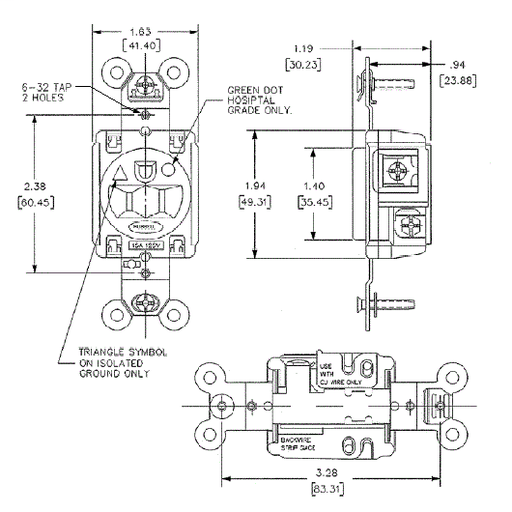

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece brass integral ground strap
  • Unique bypass contact design
  • Standard Product
