Erico CWP1J Water/Gas Pipe Grnd Clmp, 1/2" 1" Pipe, (#10-#2) Sol, 6mm² Sol-25 mm² Strnd

Manufacturer: Cadweld | Catalog # CWP1J | Codale Part # 3454709
$17.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet Product Catalog Page

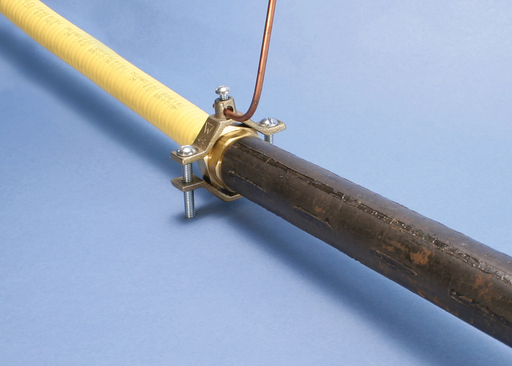

Used for connecting copper conductors to metallic water pipe, ground rods, or flexible gas pipe (CSST) with brass hex fittings. It is made with High-strength silicone bronze.

Technical Information

Material
Bronze
Standard
CULus®
Type
Water/Gas Pipe Ground Clamp

Packaging

Standard Packaging Qty
25 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856305965
Product UPC
78285630596
Weight
0.09 kg

Dimensions

Hex Size
1 in

Certifications and Compliance

Certifications
CSA 234283,CULus

Certifications & Compliance

Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features
  • High-strength silicone bronze
  • Used for connecting copper conductors to metallic water pipe, ground rods, or flexible gas pipe (CSST) with brass hex fittings
  • Conform to the requirements of the 2009 edition of NFPA® 54, NFGC® (National Fuel Gas Code) and NEC® (National Electric Code) for bonding corrugated stainless steel tubing (CSST) gas piping systems to the grounding conductor of the buildings electrical system
  • SH version for outdoor applications
Certifications
  • CSA CSA C22.2 No. 0, CSA C22.2 No. 41
  • UL ANSI/UL 467
  • cUL CSA C22.2 No. 41
