Hubbell HBL2335 20 Amp 277 Volt 2-Pole 3-Wire NEMA L7-20P White Locking Flanged Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2335 | Codale Part # 3456103
$87.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20P, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Contact Material
Brass
Current
20 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Nylon
Mounting Type
Screw

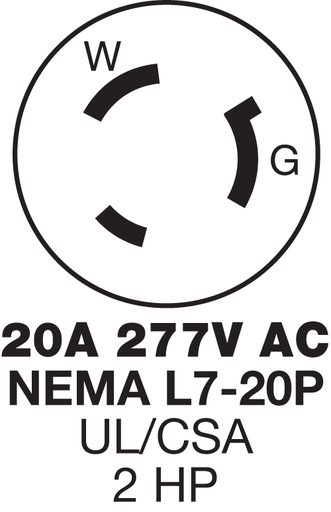

NEMA
L7-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Non-Reversing
Voltage
277 Volt
Wattage
5540 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585037936
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503793
Weight
0.20 lb

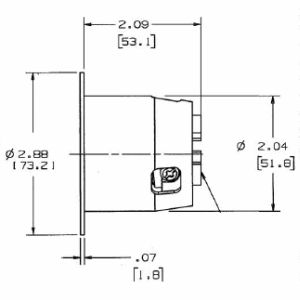

Dimensions

Height
2.09 Inch
Length
2.88 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product
