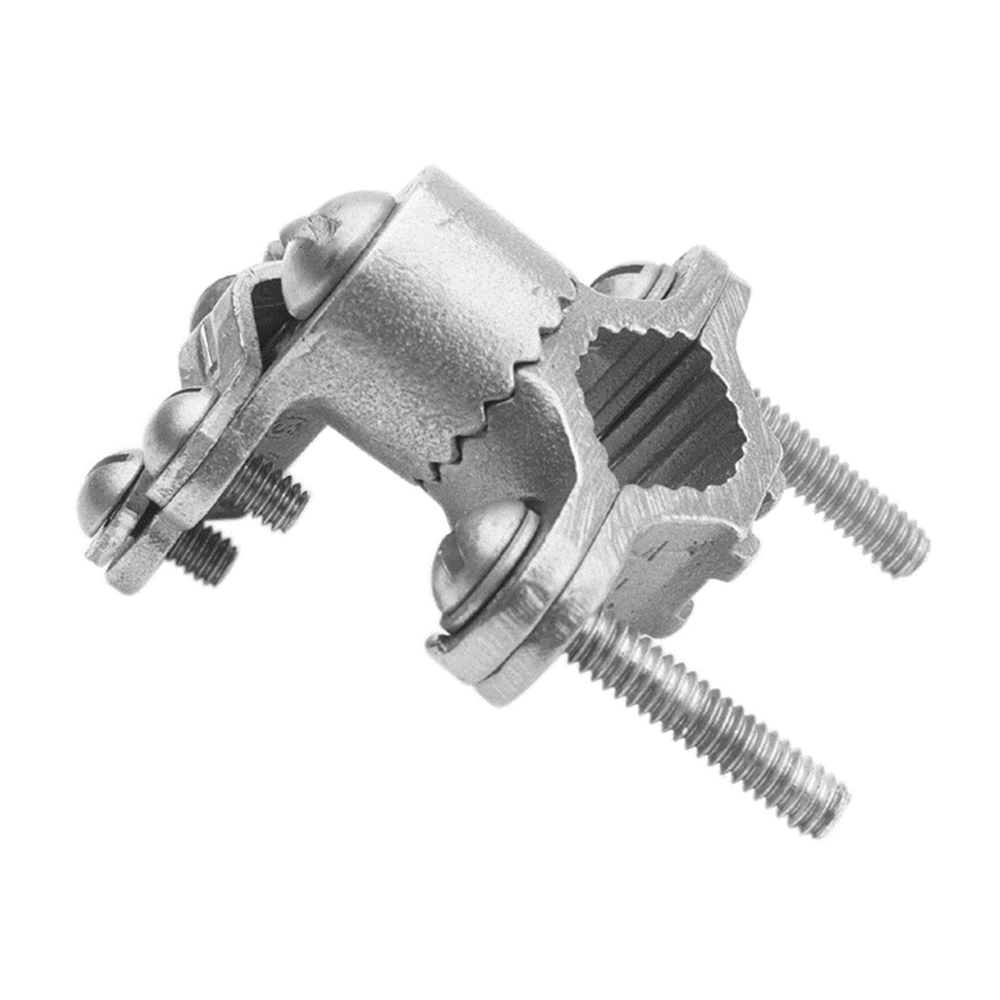

Product image for Burndy C22HD4/0DB Cast Bronze ground Clamps, 360 in L, 1-1/4"- 2" Water Pipe (Run), #8 - 4/0 Ground (Tap)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy C22HD4/0DB Cast Bronze ground Clamps, 360 in L, 1-1/4"- 2" Water Pipe (Run), #8 - 4/0 Ground (Tap)

Manufacturer: Hubbell-Burndy | Catalog # C22HD4/0DB | Codale Part # 3456420
$73.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cast Bronze ground Clamps, 3.60 in L, 1-1/4"- 2" Water Pipe (Run), #8 - 4/0 Ground (Tap).

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Conductor Size
1 AWG
Material
Bronze
Plated?
No
Plating Type
Zinc
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Type
WaterPipe Gounding Connectors

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
CLAMP

General Product Info

12-Digit UPC
781810353196
Product UPC
78181035319
Weight
0.6200 lb

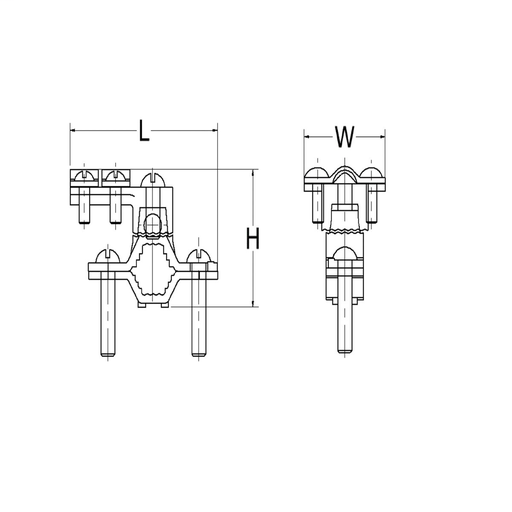

Dimensions

Height
2.89 Inch
Length
2.65 Inch
Overall Length
67 mm
Width
1.41 in

Certifications and Compliance

Country of Origin
India
CSA
No
Features
  • Connects grounding conductor, EMT or rigid conduit to water pipe, copper tube, ground rod or rebar
  • Hub swings 360° for easy alignment
  • Reverse bottom clamp for smaller size rebar or rod
