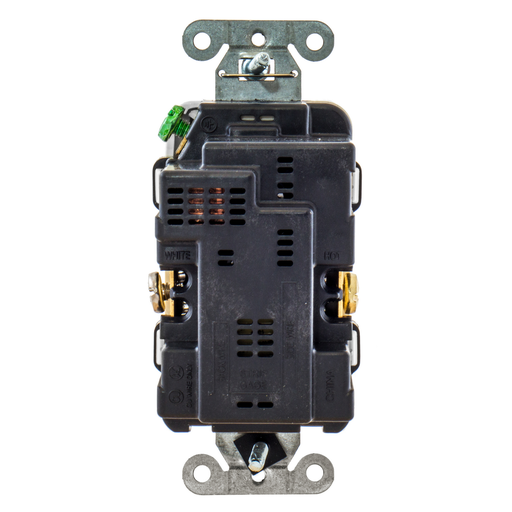

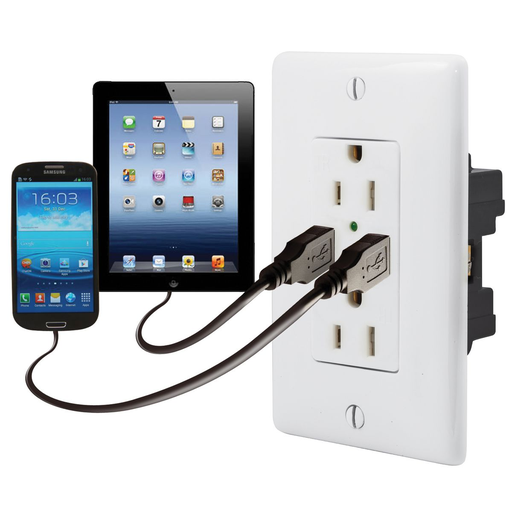

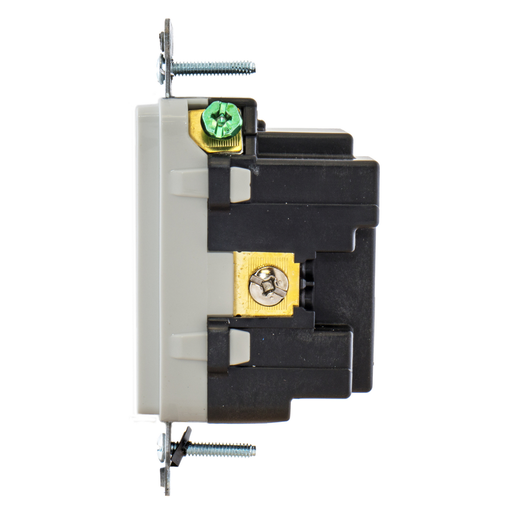

Hubbell USB15X2-W USB Charger / Tamper-Resistant Receptacle, Two USB Type 2.0 Ports 3 Amp, 5VDC, 15 Amp, 125VAC Decorator Duplex - White

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB15X2W | Codale Part # 3459565
$69.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
USB 15 A, 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3 Amp, 5 Volt DC

Technical Information

Amperage
15 Amp
Applications
USB Charger Hospital Grade
Base Material
RTP,RTP
Conductor Size
14-10 AWG
Contact Material
Plated Steel
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
RTP,RTP
Flamability Class
UL 94V-2
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Flush
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Screw Material
Plated Steel
Size
4.12 in x 1.75 in x 1.96 in
Tamper Resistant?
Yes
Tc Connection
Back and Side Wired Screw Terminals
Type
Two Type 2.0 Ports
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778304606
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Finish
Matte
Product UPC
88377830460
Weight
0.3600 lb

Dimensions

Height
1.96 Inch
Length
4.12 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
  • Dual USB Charger, Tamper Resistant
