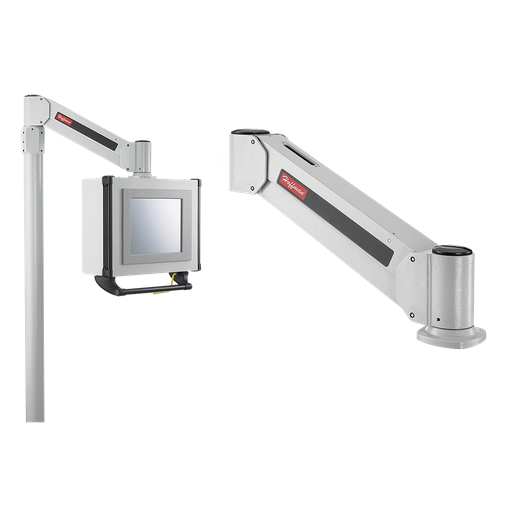

Product image for Hoffman VL22 SYSPEND VL-Motion Arm, Type 4, 6.72x 25.5x 3.5, Gray, Aluminum
Image thumbnail 0
Image thumbnail 1
Email

Hoffman VL22 SYSPEND VL-Motion Arm, Type 4, 6.72x 25.5x 3.5, Gray, Aluminum

Manufacturer: nVent Hoffman | Catalog # VL22 | Codale Part # 3459639
$4,316.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Syspend VL-Motion Arm is a vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. Gas spring counterbalance can be adjusted for loads of 30-100 lb. Release handle and locking mechanism are ideal for applications where machine vibration is a concern. Release handle is included in the arm and is required to operate the arm.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Aluminum
Size
6.72x25.5x3.5 in
Standard
Maintains NEMA Type 4 And 12 And IEC IP66 Enclosure Rating When Properly Installed Per Hoffman Instructions.
Type
SYSPEND™ VL-Motion Arm,Type 4

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Syspend

General Product Info

12-Digit UPC
783510186821
Color
Gray
Finish
Powder Coated
Product UPC
78351018682
Weight
21.40 lb

Dimensions

Depth
3-1/2 Inch
Height
6.72 Inch
Length
31.3 Inch
Width
16.10 in
DISK UNSPSC
39121325
Features
  • Field-adjustable internal gas spring counterbalance supports loads of 30-100 lbs.
  • Gas springs are set to maximum pressure (100 lb. load) and lifting force can be reduced through a sealed access cap in the top of the arm
  • Lifting force cannot be increased once spring pressure is reduced
  • Provides 13 in. of vertical height adjustment
  • Release handle automatically locks arm in place when repositioned vertically
  • Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
  • 1.4-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
  • Gasketed mounting surfaces at both ends of arm maintain seal integrity
  • Enclosure and arm can be swiveled 320 degrees
  • Mounting adapter is required with options of wall-mount, machine-top-mount and post-top-mount
  • Optional floorpost available
