Red Dot IH4-1-LM 1-Gang Weatherproof Metallic Device Box, (4) 1/2" Hubs, 2" Deep

Manufacturer: ABB Thomas & Betts | Catalog # IH4-1-LM | Codale Part # 3460075
$982.28/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
105 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Single Gang Universal Weatherproof Box, 17 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 4 Outlets, Two on Top, and One Bottom and Back, with Mounting Lugs

Technical Information

Applications
Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Cable Entry
(4) 1/2 in Hole
Material
Aluminum
Mounting Type
Wall/Ceiling
Number of Gangs
1 Gang
Type
4-Inlet, 4-Outlet, Rectangular

Manufacturer Information

Brand
ABB
Sub Brand
Dry-Tite®, Red Dot®

General Product Info

12-Digit UPC
042269392557
Color
Silver
Finish
Anodized
Product UPC
04226939255
Weight
0.5700 lb

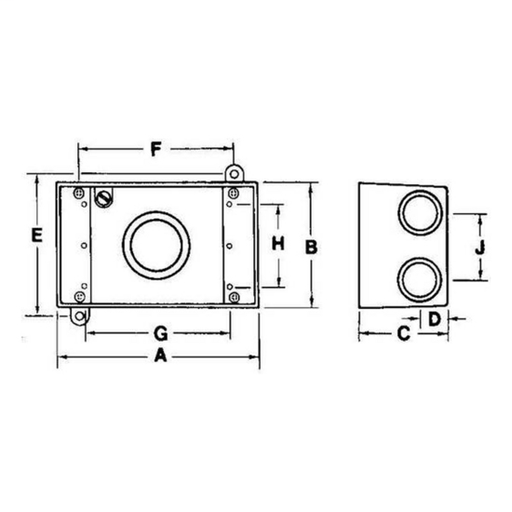

Dimensions

Depth
50.8 mm
Height
10-1/4 Inch
Width
71.4 mm
Application
  • Junction box for branch conduits
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Features
  • Clear UL and cubic content markings speed approval by inspectors
  • Clean cover edges provide good gasket sealing.
  • Convenient mounting lugs for a variety of mounting methods
  • Precision cast and machined surfaces permit safer wire pulling.
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Securely fastened mounting plates reduce costly call backs
Certifications
  • UL
Notes
  • Rain tight when used with appropriate Red Dot covers.
