Hubbell USB15X2-I USB Charger / Tamper-Resistant Receptacle, Two USB Type 2.0 Ports 3 Amp, 5VDC, 15 Amp, 125VAC Decorator Duplex - Ivory

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB15X2I | Codale Part # 3460516
$51.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
USB 15 A, 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3 Amp, 5 Volt DC

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Base Material
RTP,RTP
Conductor Size
14-10 AWG
Connection Type
Back and Side
Contact Material
Plated Steel
Current
15 Amp
Face Material
RTP,RTP
Flamability Class
UL 94V-2
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Screw Material
Plated Steel
Size
Standard Sized Product
Tamper Resistant?
Yes
Tc Connection
Back and Side Wired Screw Terminals
Temperature Rating
-40 to 75 degrees C Continuous
Type
Tamper-Resistant, Decorator
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778304583
Color
Ivory
Environmental Conditions
UL 94-V2 Flammability Rating
Product UPC
88377830458
Weight
0.3600 lb

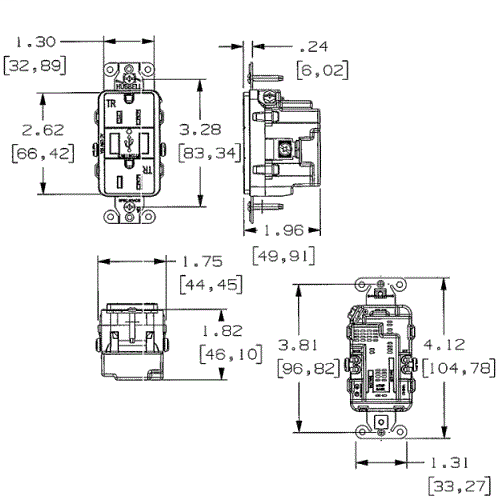

Dimensions

Height
1.96 Inch
Length
4.12 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Mechanical - USB Port - Stainless steel Rated for 10,000 plug insertions and removal
Overview
  • Straight Blade Devices, Receptacles, Duplex, Dual USB Type 2.0 ports 3.8 Amp, 5 Volt DC, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Ivory
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
  • Green LED indicator to show USB power available
  • Tamper-Resistant decorator duplex receptacle
  • Dual USB Charger, Tamper Resistant
  • Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
