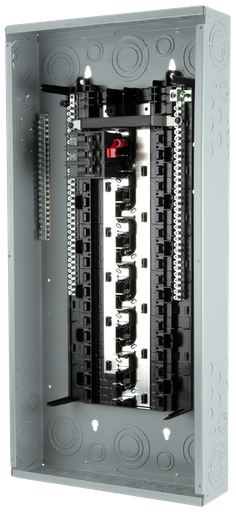

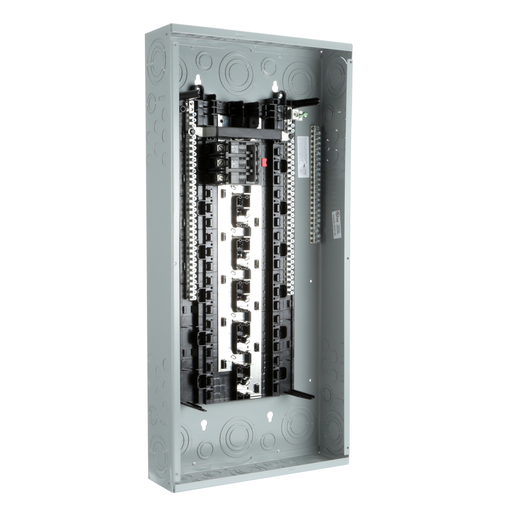

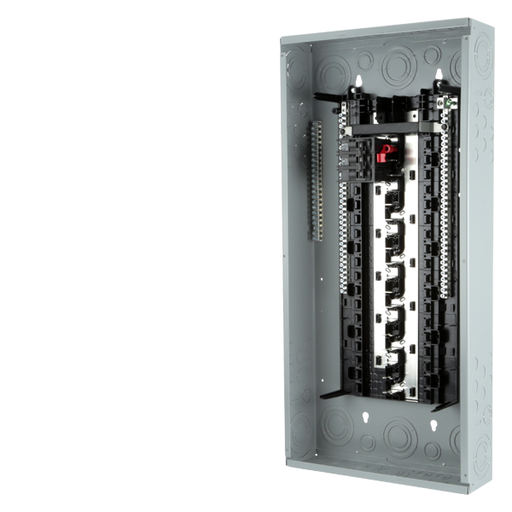

Product image for Siemens P3042B3100CU 120/208/240 VAC 100 Amp 3-Phase 3/4-Wire NEMA 1 Main Breaker/Convertible Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Siemens P3042B3100CU 120/208/240 VAC 100 Amp 3-Phase 3/4-Wire NEMA 1 Main Breaker/Convertible Load Center

Manufacturer: Siemens | Catalog # P3042B3100CU | Codale Part # 3461687
$1,025.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 30 1-INCH SPACES ALLOWING MAX 42 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (100A) 22KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.

Technical Information

Amperage
100 Amp
Applications
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Bus Rating
COPPERBUS
Cable Size
N/A
Circuit Breaker Type
100A
Cover Type
PL Series
Enclosure
TYPE1
Interrupt Rating
22 kAIC
Mounting Type
FLUSH / SURFACE
Number of Phases
3 Phase
Number of Spaces
30
Size
2990
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage
120 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
UL

General Product Info

12-Digit UPC
662643853858
Product UPC
66264385385
Weight
30.690 lb

Dimensions

Height
32-1/2 Inch
Length
16 Inch
Width
5.750 in

Certifications and Compliance

Country of Origin
Mexico
