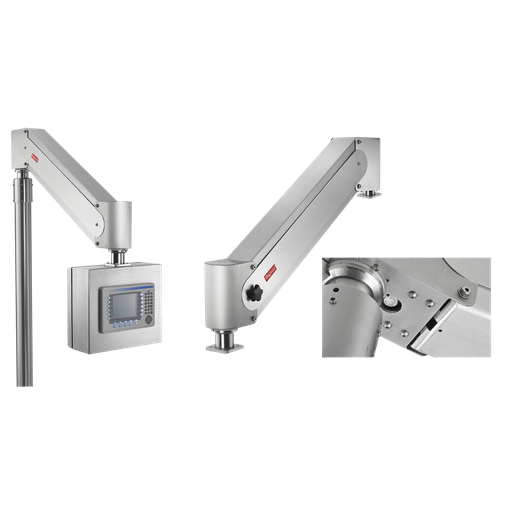

Product image for Hoffman VHDS26 SYSPEND VHDS-Motion Arm, Type 4X, 10.18x 30.65x 4.86, SS Type 304
Image thumbnail 0
Image thumbnail 1
Email

Hoffman VHDS26 SYSPEND VHDS-Motion Arm, Type 4X, 10.18x 30.65x 4.86, SS Type 304

Manufacturer: nVent Hoffman | Catalog # VHDS26 | Codale Part # 3461795
$7,837.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Syspend VHD-Motion Arm is a heavy-duty, stainless steel vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. It provides corrosion resistance and suspends process and control equipment for easy cleaning. It lets you easily field-adjust the lifting force as needed to accommodate user configurations and equipment changes up to 125-lb. load. No release handle is required to operate the arm; enclosure stays in place after repositioning.

Technical Information

Applications
Controls and Drives; Corrosive Environments
Material
Stainless Steel
Size
10.18x30.65x4.86 in
Type
Vertical Motion Arms

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Syspend

General Product Info

12-Digit UPC
783510185145
Color
Unpainted
Finish
Brushed
Product UPC
78351018514
Weight
46.3 lb

Dimensions

Depth
4.86 Inch
Height
10.18 Inch
Length
34-1/2 Inch
Width
15.10 in
DISK UNSPSC
39121325
Features
  • Corrosion resistant stainless steel housing with provisions for water drainage from arm
  • 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
  • 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
  • Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
  • Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
  • Tension adjustment at front of the arm provides additional fine-tuning of lifting force
  • Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
  • 1.25-in. internal cable pathway maintains Type 4, 4X and 12 enclosure rating and protects wires and cables
  • Gasketed mounting surfaces at both ends of arm maintain seal integrity
  • Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30 degree increments
  • Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
  • Optional floorpost available
  • Adapter is available to attach the arm to Syspend Sanitary HMI enclosure quickly
