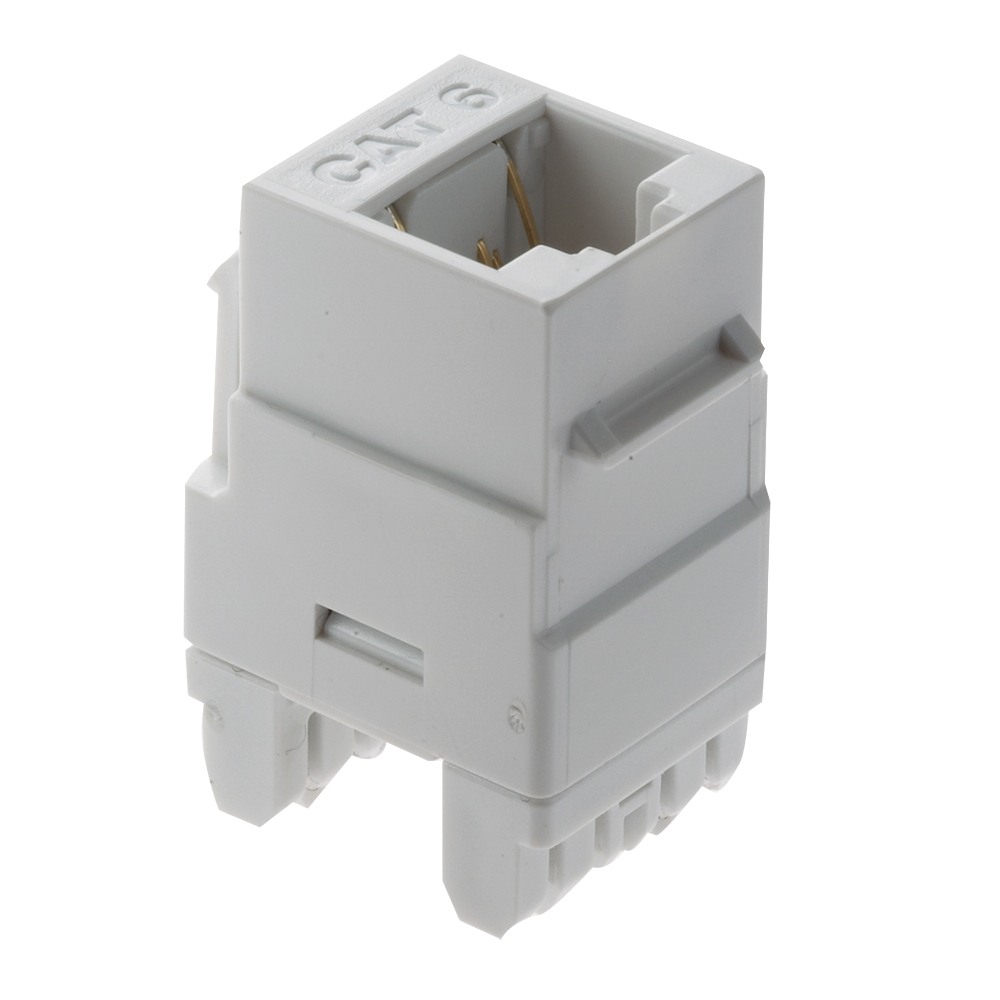

Product image for On-Q WP3460-WH 1-Port RJ45 Category 6 White Plastic Snap-In Keystone Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

On-Q WP3460-WH 1-Port RJ45 Category 6 White Plastic Snap-In Keystone Connector

Manufacturer: Legrand Pass & Seymour | Catalog # WP3460WH | Codale Part # 3464119
$16.55/ea
ea
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
This high quality insert is for use in all Keystone Wall Plates

Technical Information

Amperage
1.5 Amp at 20 C
Applications
Residential, for Round Cable, Flat Cable, Solid Core
Cable Size
22-24 AWG
Cable Type
Category 6
Contact Material
Phosphor bronze alloy with 50 in gold-plating over 100 in nickel
Current
1.5 (@ 20 degrees C) Amp
Material
Phosphor Bronze Alloy Plated with 50 in of Gold over 100 in of Nickel
Mounting Type
Keystone
Number of Ports
1
Number of Positions
8
Size
063 x 0.87 x 1.26 (16 x 22 x 32) in (mm)
Tc Connection
RJ45 Female
Temperature Rating
14 - 140 degrees F
Termination Type
IDC Wire Guage
Type
RJ-45 8(4) Female, T568-A/B Wiring, Bus Jack, M20
Voltage
1000 VRMS

Manufacturer Information

Brand
OnQ Solutions
Sub Brand
On-Q

General Product Info

12-Digit UPC
804428024361
Color
White
Environmental Conditions
0 - 93% RH Non-Condensing
Finish
Molded Plastic Chemically Etched with Diamond Core
Product UPC
80442802436
Weight
0.025 lb

Dimensions

Height
0.87 Inch
Length
1.28 Inch
Width
0.64 in
Features
  • Creates an Ethernet port
  • Connects to Cat5, Cat5e, or Cat6 cables terminated with RJ-45 plugs Rear retention caps ensure secure wire termination
  • Vertical design for easy punchdown termination
  • T658A and T568B wiring labels included
  • Meets Category 6 described in TIA/EIA-568-B.2
  • Insertion and extraction life is 750 Cycles Min
  • Jack housing is high-impact, flame resistant plastic, UL 94V-0
  • Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
Eco-Benefit Information
  • RoHS Compliant
