Hoffman SF0926414 IP54 9" Filter Fan 230V 7035

Manufacturer: nVent Hoffman | Catalog # SF0926414 | Codale Part # 3464827
$227.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cooling fan, side mount, RAL 7035 light grey, 75 CFM (127 m /hr.), UV-resistant plastic standard. Click-fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Standard foam-in-place gasket. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
0.11 Amp
Applications
Industrial
Current
.11 Amp
Frequency
50/60 Hz
Max Temperature
131 degrees F
Min Temperature
55 degrees F
Number of Phases
1 Phase
Size
8.03x8.03x3.54 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type
SF09 75 CFM (127 m3/hr.) Side-Mount Filter Fan
Voltage
230 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510200176
Finish
Gray
Product UPC
78351020017
Weight
1.74 lb

Dimensions

Depth
3.54 Inch
Height
8.02 Inch
Width
8.02 in
Features
  • Similar cut-out sizes as other filter fan manufacturers
  • Optional thermostat available to save energy and extend service life
  • Terminal wire connections
  • Simple snap-open grille for easy filter replacement
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Enclosure side wall mounting
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Standard foam-in-place gasket
Applications
  • Food and beverage process controls
  • Wind energy systems
  • Package handling equipment
  • Automotive assembly
  • Industrial automation
Accessories
  • Rain shroud
  • Replacement filters
  • Thermostat
Finish
  • RAL 9011 black, UV-resistant plastic optional
  • RAL 7035 light-gray, UV-resistant plastic standard
Specifications

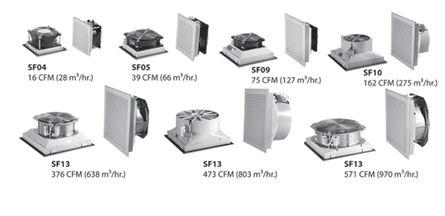

  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Service life hours from 40000 to 70000 hours
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
