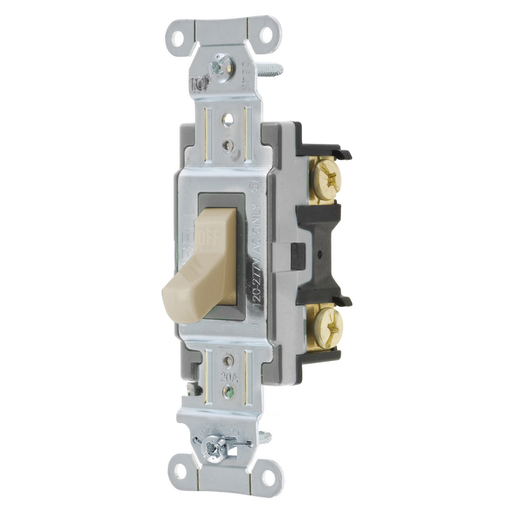

Hubbell CSB220AL SWITCH, COMM, DP, 20A 120/277V, B+S, AL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CSB220AL | Codale Part # 3465421
$12.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, Almond

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
Commercial Spec Grade
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Commercial
Material
Nylon
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Double Pole
Tc Connection
Back and Side Wired
Type
General Purpose, 2-Position, Standard
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585154190
Color
Almond
Product Series
General Purpose
Product UPC
78358515419
Weight
0.15 lb

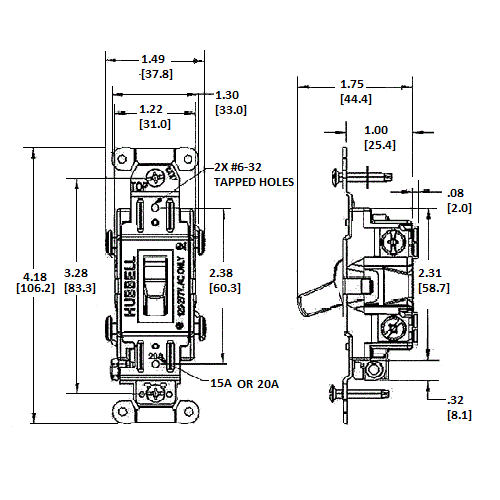

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
