Panduit FSD85-18-L Covered Single Wire Ferrules

Manufacturer: PANDUIT | Catalog # FSD85-18-L | Codale Part # 3466113
$1,924.39/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

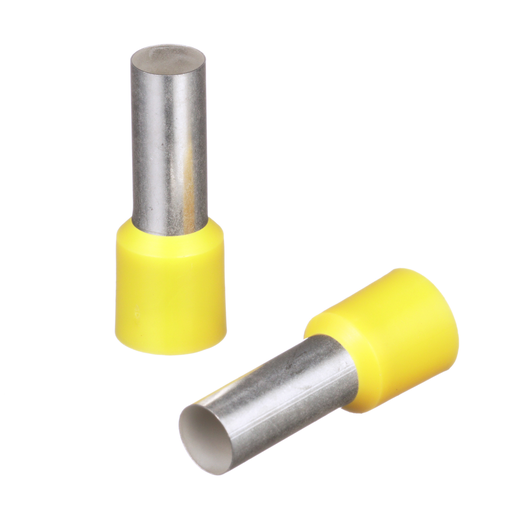

The single wire DIN end sleeve insulated ferrule in yellow has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #4 (25.0 mm.) wire ferrules and supports a maximum wire insulated diameter of 0.43 (11.0 mm). The insulated ferrule is 1.22 (31.0 mm) long and has a wire strip length of 0.875 (22.3 mm). It comes in standard packages of 50.

Technical Information

Color Coding
NA
Conductor Size
4 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Standard
IEC 60947; EN 60947; UL Listed; CSA Certified; DIN VDE 0600
Temperature Rating
221 degrees F
Type
Covered Single Wire Ferrule
Wire Size
4 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983762729
Color
Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498376272
UNSPSC
39121409
Weight
0.0002 lb

Dimensions

Overall Length
1.22 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Germany
Standards and Certifications
  • Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
