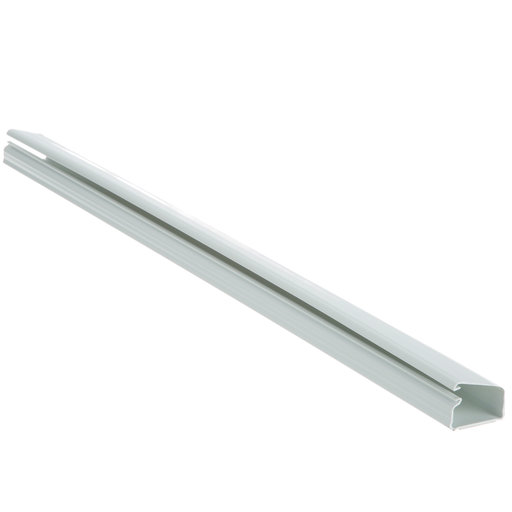

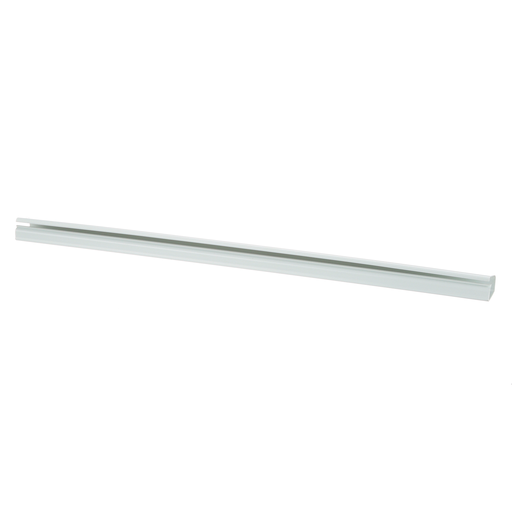

Panduit LD10WH8-A Surface Raceway, LD10 Low Voltage Single Channel, 8 ft, White

Manufacturer: Panduit | Catalog # LD10WH8-A | Codale Part # 346740
$7.30/ea
ft
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The LD10 surface raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 1.5 inches wide by 0.94 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is white.

Technical Information

Applications
For Routing any Low Voltage Cable along Smooth and Clean Perimeter Walls, Baseboards or Ceilings, Schools, Hospitals, Offices, Homes or Anywhere a Small, Secure, Low Profile Raceway
Cover Type
Single-Channel
Material
PVC
Mounting Type
Adhesive
Type
1-Piece, Low Voltage, Surface Mount

Packaging

Pkg Qty
8

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983729890
Color
White
Product UPC
07498372989
Weight
1.2448 lb

Dimensions

Height
23.87 mm
Length
2.4 m
Overall Length
8 ft
Width
38.4 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL94V-0, FT4, Meets TIA/EIA Standards
