Hoffman SF0516514 IP55 5" Filter Fan 115V 7035

Manufacturer: nVent Hoffman | Catalog # SF0516514 | Codale Part # 3469623
$264.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Click fit design quickly installs into enclosure wall; no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
0.23 Amp
Applications
Industrial
Current
.23 Amp
Frequency
50/60 Hz
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
5.83x5.83x2.56 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type
SF05 39 CFM (66 m3/hr.) Side-Mount Filter Fan
Voltage
115 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510200978
Finish
Gray
Product UPC
78351020097
Weight
1.19 lb

Dimensions

Depth
2.56 Inch
Height
5.83 Inch
Width
5.83 in
Features
  • Similar cut-out sizes as other filter fan manufacturers
  • Standard foam-in-place gasket
  • Terminal wire connections
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Optional thermostat available to save energy and extend service life
  • Simple snap-open grille for easy filter replacement
  • Enclosure side wall mounting
Applications
  • Food and beverage process controls
  • Automotive assembly
  • Wind energy systems
  • Package handling equipment
  • Industrial automation
Accessories
  • Thermostat
  • Rain shroud
  • Replacement filters
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications

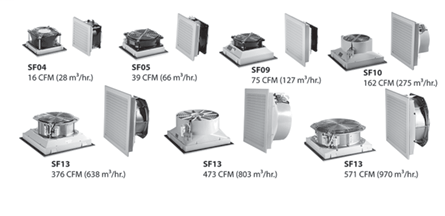

  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Service life hours from 40000 to 70000 hours
