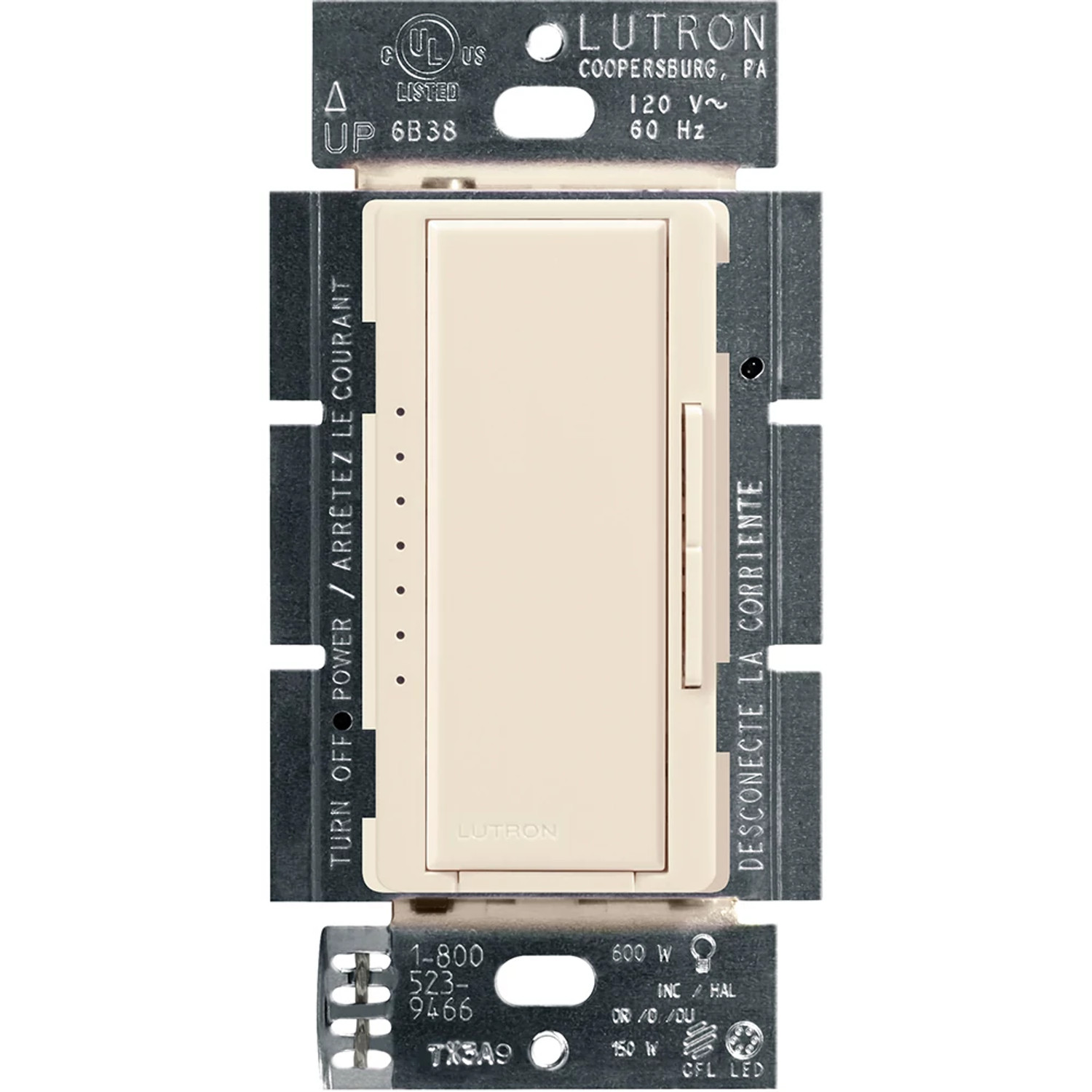

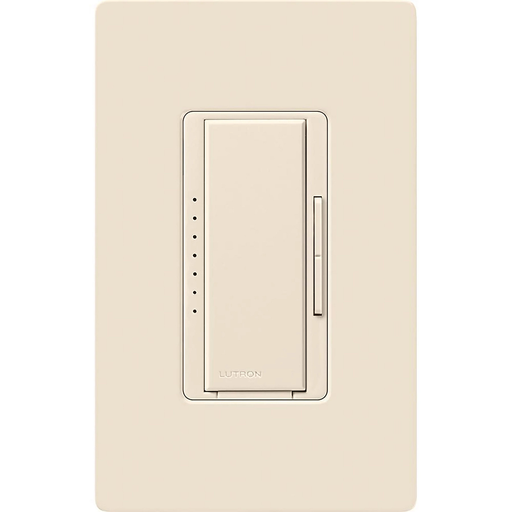

Lutron MACL-153M-LA 600 W 120 Volt Light Almond 1-Pole/3-Way/Multi-Location Incandescent/Halogen Dimmer

Manufacturer: Lutron Electronics | Catalog # MACL-153M-LA | Codale Part # 3469973
$45.30/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Maestro LED+ Multiloc, Ed Box Light Almond

Technical Information

Actuator
Tapswitch
Applications
For Universal and LED/CFL Retrofit, Lighting Control
Bulb Compatibility
Dimmable CFLs,Dimmable LEDs,Halogens,Incandescents
Connection Type
Screw Terminal
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Plastic
Max Wattage
150 W
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
0 - 40 degrees C
Power Rating
150 W LED/CFL or 600 W Incandescent/Halogen
Size
75 in
Standard
UL CSA NOM
Tc Connection
Screw terminals
Type
Multi-Location, 3 Way, Tap Switch, Digital Fade, Phase Cut-Off/Cut-On
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276010672
Color
Almond
Environmental Conditions
0 - 90% RH Non-Condensing, Indoor Use Only
Finish
Gloss
Product UPC
78427601067
Weight
0.4100 lb

Certifications and Compliance

Country of Origin
Mexico
Standards and Certifications
  • UL
  • CSA
  • NOM
Features
  • Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
  • Provides over 250 lighting levels so you can create the perfect light for any activity
  • Works with up to 150 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs
  • Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
  • Can be used in single-pole or 3-Way/multi-location dimming applications (up to 10 locations, Maestro companion dimmer MA-RR-XX required)
  • Easy-to-operate tap switch turns lights on/off to favorite light level. Rocker dims and brightens. Advanced programming settings for features such as customizable delayed-fade-to off
  • Installs in as little as 15 minutes in homes of all ages NO NEUTRAL REQUIRED
  • Includes (1) Maestro LED+ (formerly C.L) dimmer switch; coordinating wallplate sold separately
  • Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table
  • 100% factory tested
  • Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Provides true dimming from each location (with companion dimmers)
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
