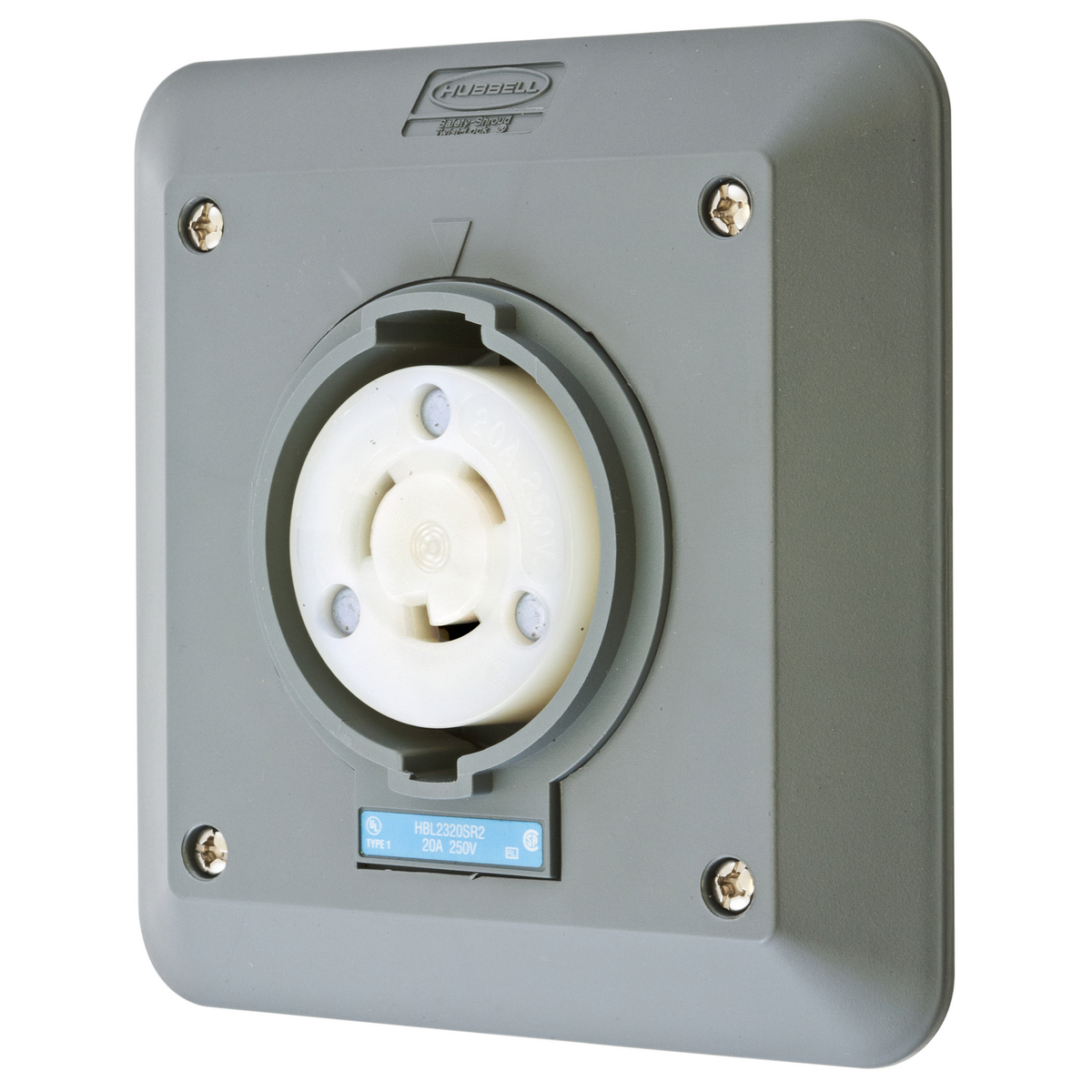

Product image for Hubbell HBL2320SR2 20 Amp 250 Volt 2-Pole 3-Wire NEMA L6-20R Gray Semi Flush Locking Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

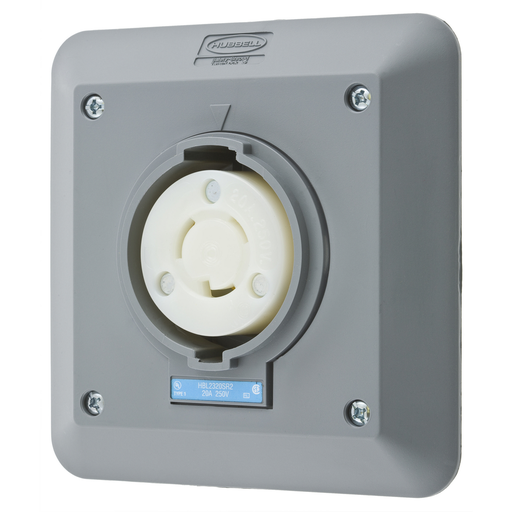

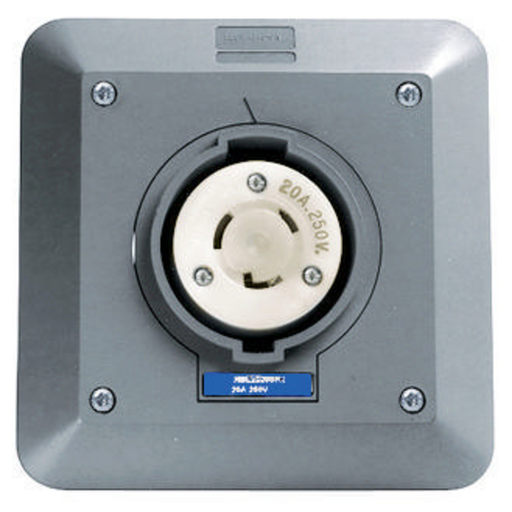

Hubbell HBL2320SR2 20 Amp 250 Volt 2-Pole 3-Wire NEMA L6-20R Gray Semi Flush Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2320SR2 | Codale Part # 3470642
$59.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Semi-flush 2-Gang Surface Mount Safety-Shroud® Receptacle, 20A 250V, 2-Pole 3-Wire Grounding, NEMA L6-20R, Screw Terminal, PBT housing, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Gang Type
2
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L6-20R
Number of Gangs
2 Gang
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
2-Gang, Shrouded, Heavy Duty
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234120
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523412
Weight
0.55 lb

Dimensions

Height
2.22 Inch
Length
5.12 Inch
Width
5.12 in

Certifications and Compliance

Country of Origin
USA
Features
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • 2-Gang Surface Mount
