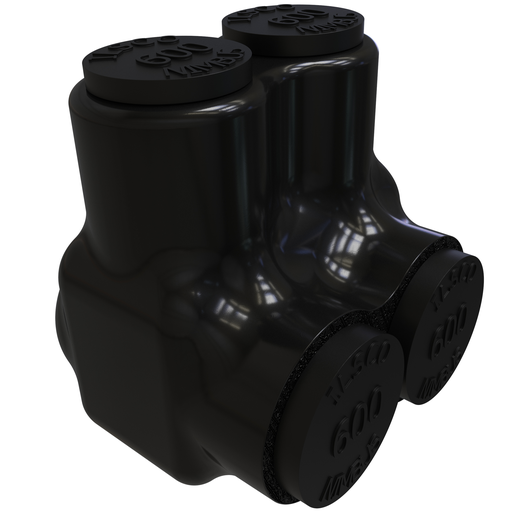

Ilsco PBTS-2-500 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTS-2-500 | Codale Part # 3470858
$116.59/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nimbus Insulated Multi-Tap Connector, Single Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 4 Str, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 3/8 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
475 Amp
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Size
4 AWG-600 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
2
Number of Ports
2
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
Insulated, One Side, PBTS
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669080285
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366908028
Weight
0.707 lb

Dimensions

Height
3.034 Inch
Length
2.781 Inch
Width
2.578 in
