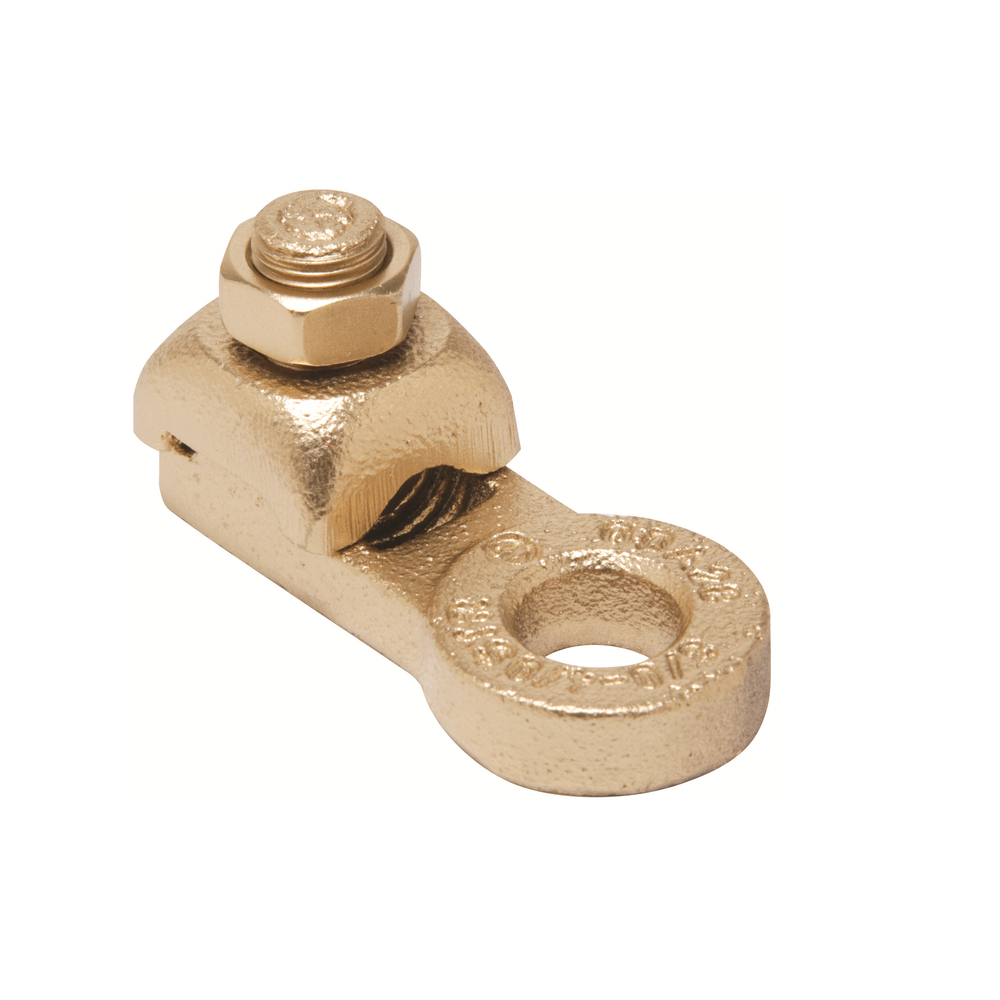

Product image for Burndy QDA1C Copper Terminal, 1 Hole, 4-1 AWG (Str), 3/8" Stud, 1 Screw
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy QDA1C Copper Terminal, 1 Hole, 4-1 AWG (Str), 3/8" Stud, 1 Screw

Manufacturer: Hubbell-Burndy | Catalog # QDA1C | Codale Part # 3472244
$138.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Copper Terminal, 1 Hole, 4-1 AWG (Str), 3/8" Stud, 1 Screw

Technical Information

Applications
For Joining A Wide Range of Copper Cable to Equipment Studs
Bolt Size
3/8 in
Conductor Size
4-1 AWG
Conductor Type
Commercial Stranded Copper (Run), Copper (Navy)
Connection Type
Single Clamp
Material
Copper
Mounting Hole Size
7/16 in
Number of Conductors
1
Plated?
No
Plating Type
Unplated
Standard
CSA,E2186,UL
Stud Size
3/8 in
Type
K2A-U, Universal, Dual-Rated

Manufacturer Information

Brand
Burndy
Sub Brand
Qiklug™

General Product Info

12-Digit UPC
781810324929
Finish
Bare
Product UPC
78181032492
Weight
0.1700 lb

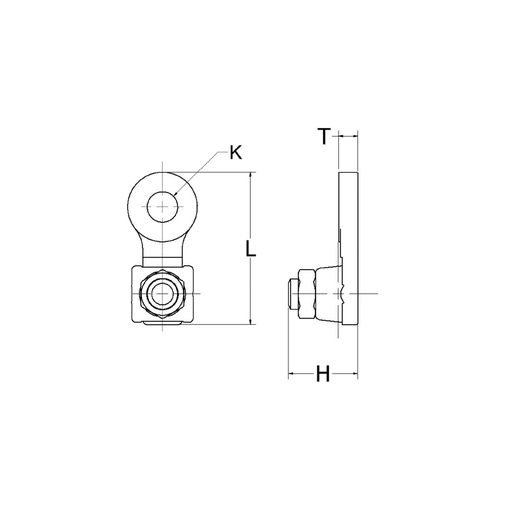

Dimensions

Height
1 Inch
Hole Size
0.44 in
Length
2.19 Inch
Overall Length
56 mm
Pad Width
1.00 in
Thickness
11/50 in
Width
25 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • Compact, high copper alloy terminal
  • Joins a wide range of cable to equipment studs
  • Provides low contact resistance when gripped between two contact nuts
  • One-wrench installation
