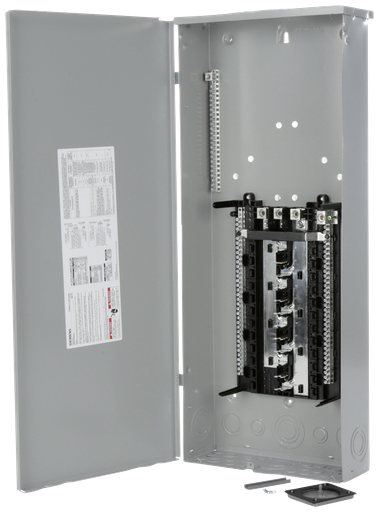

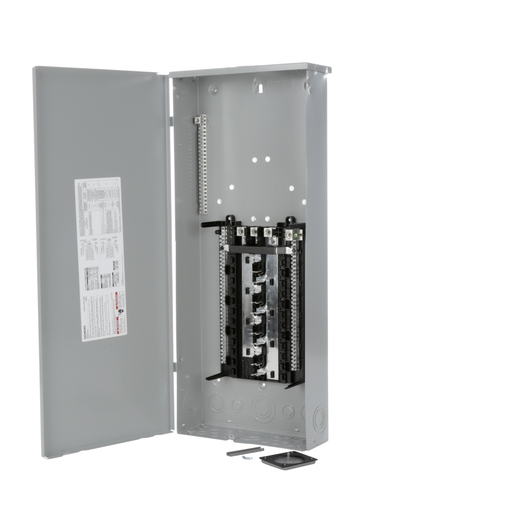

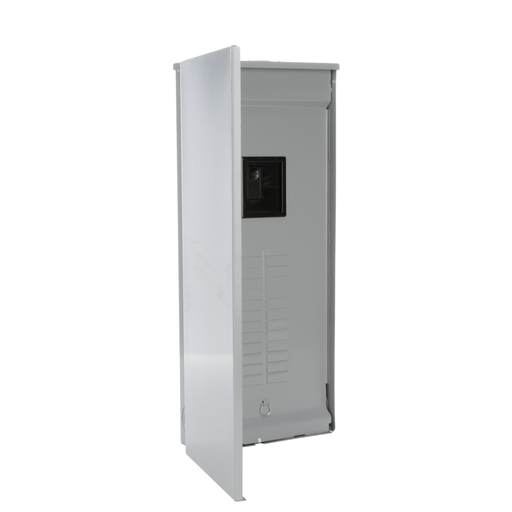

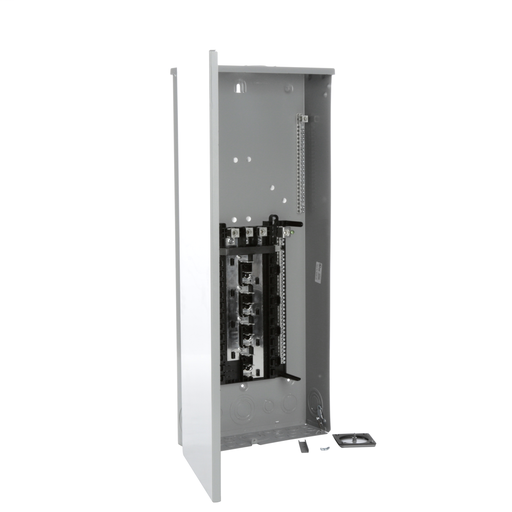

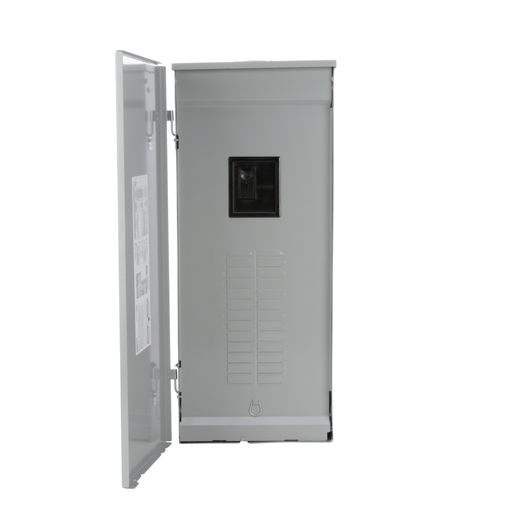

Product image for Siemens PW2442L3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 3R Main Lug/Convertible Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Siemens PW2442L3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 3R Main Lug/Convertible Load Center

Manufacturer: Siemens | Catalog # PW2442L3200CU | Codale Part # 3472494
$894.21/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. MAIN LUG WITH 24 1-INCH SPACES ALLOWING MAX 42 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 100KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.

Technical Information

Amperage
200 Amp
Applications
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Bus Rating
COPPERBUS
Cable Size
N/A
Circuit Breaker Type
N/A
Cover Type
PL Series
Enclosure
TYPE3R
Interrupt Rating
100 kAIC
Mounting Type
FLUSH / SURFACE
Number of Phases
3 Phase
Number of Spaces
24
Size
2828.75
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage
120 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
UL

General Product Info

12-Digit UPC
662643156829
Product UPC
66264315682
Weight
31.948 lb

Dimensions

Height
36-1/2 Inch
Length
15-1/2 Inch
Width
5.000 in

Certifications and Compliance

Country of Origin
Mexico
