DeWalt / Powers 7415SD1 3/8 x 3-3/4" Wedge Anchor

Manufacturer: POWERS | Catalog # 7415SD1-PWR | Codale Part # 3473286
$126.35/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

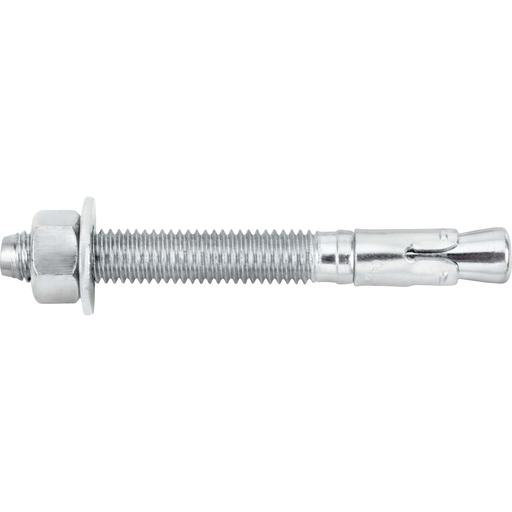

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over steel deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.

Technical Information

Applications
Interior Applications/Low Level Corrosion Environment, Seismic and Wind Loading, Tension Zone Applications
Material
Steel
Minimum Embedment Depth
1-5/8 in
Shear Strength
2540 lb
Tensile Strength
2685 lb
Thread Length
2-3/8 in
Thread Size
3/8-16 UNC
Thread Type
UNC
Type
Fully Threaded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Powers Industries
Sub Brand
Power-Stud®+ SD1

General Product Info

12-Digit UPC
075352776019
Finish
Zinc
Product UPC
07535277601
Weight
0.119 lb

Dimensions

Diameter
3/8 Inch
Overall Length
3-3/4 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
No
Features
  • Consistent performance in high and low strength concrete
  • Nominal drill bit size is the same as the anchor diameter
  • Anchor can be installed through standard fixture holes

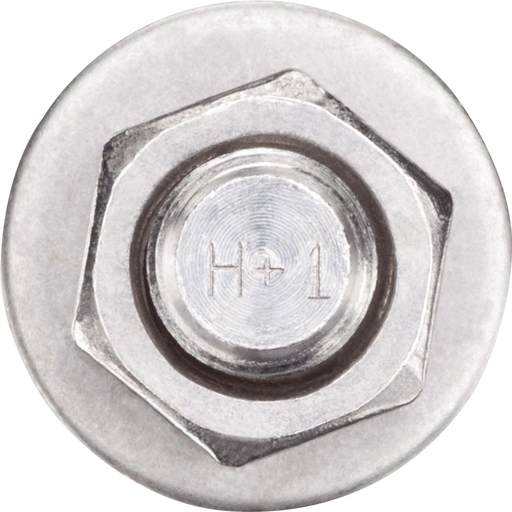

  • Length ID code and identifying marking stamped on head of each anchor
  • Anchor design allows for follow-up expansion after setting under tensile loading
Prop 65
  • No
