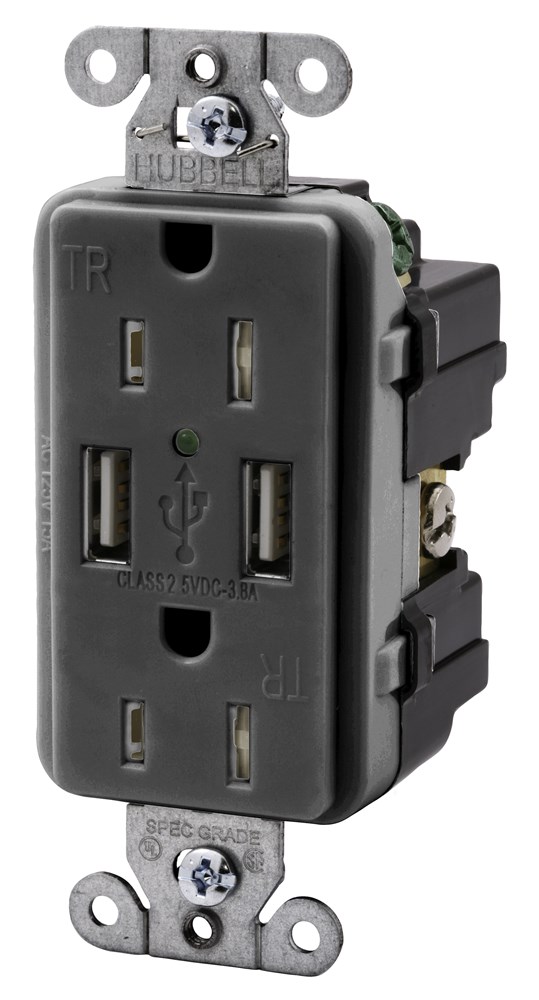

Product image for Hubbell USB15X2-GY USB Charger / Tamper-Resistant Receptacle, Two USB Type 2.0 Ports 3 Amp, 5VDC, 15 Amp, 125VAC Decorator Duplex - Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

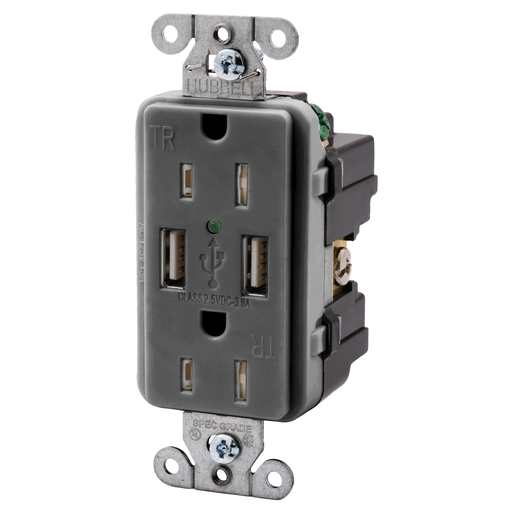

Hubbell USB15X2-GY USB Charger / Tamper-Resistant Receptacle, Two USB Type 2.0 Ports 3 Amp, 5VDC, 15 Amp, 125VAC Decorator Duplex - Gray

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB15X2GY | Codale Part # 3474713
$51.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
USB 15 A, 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3 Amp, 5 Volt DC

Technical Information

Amperage
15 Amp
Applications
For Commercial Specification Grade
Base Material
RTP,RTP
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Contact Material
Plated Steel
Current
15 Amp
Face Material
RTP,RTP
Flamability Class
UL 94V-2
Horsepower
0.5 hp
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Screw Material
Plated Steel
Size
Standard Sized Product
Tamper Resistant?
Yes
Tc Connection
Back and Side Wired Screw Terminals
Type
Duplex, Decorator, Self Grounding, Standard, Tamper-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778304668
Color
Gray
Product UPC
88377830466
Weight
0.3500 lb

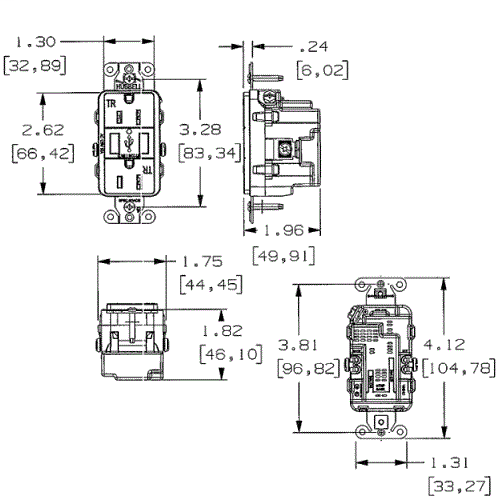

Dimensions

Height
1.96 Inch
Length
4.12 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1..0/3.0 devices, including Apple® products
  • Dual USB Charger, Tamper Resistant
