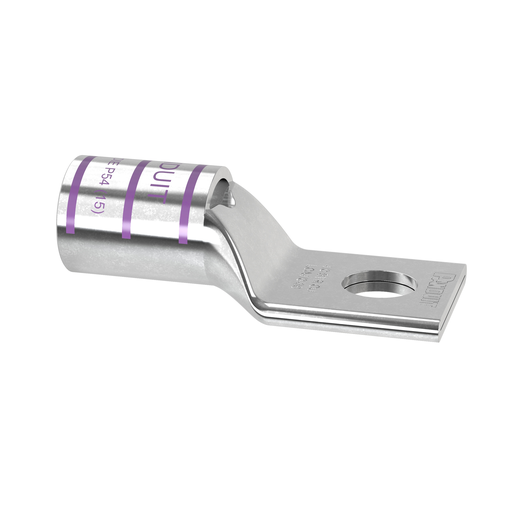

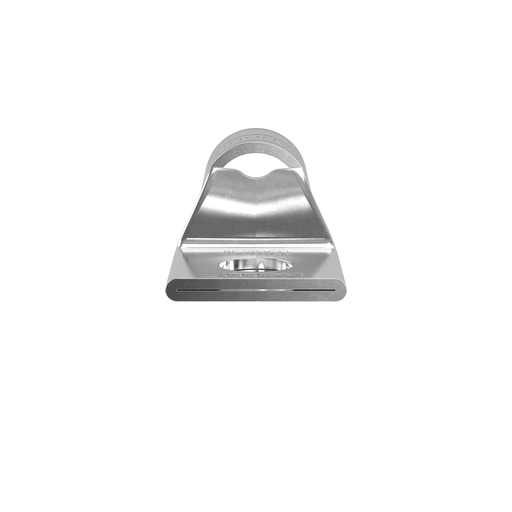

Product image for Panduit LCA4/0-38-X 1-Hole 4/0 AWG Copper Compression Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Panduit LCA4/0-38-X 1-Hole 4/0 AWG Copper Compression Lug

Manufacturer: PANDUIT | Catalog # LCA4/0-38-X | Codale Part # 3475685
$1,194.06 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
58 available

For Delivery

Not in local stock *
Check another branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Product Catalog Page Installation / Instruction Manual Primary Spec Sheet
The LCA4/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C

Technical Information

Angle
Straight
Barrel Length
1.19 in
Barrel Type
Standard with Inspection Window, Straight
Cable Size
AWG
Color Coding
Purple
Conductor Size
4/0 AWG
Material
Copper
Number of Holes
1 Hole
Size
4/0 AWG Code
Stud Size
3/8 in
Tongue Thickness
0.14 in
Tongue Type
Standard
Tongue Width
1.06 in
Type
Type LCA
Voltage
35 kV

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900404
Color
Purple
Finish
Tin Plated
Product UPC
07498390040
Weight
0.1100 lb

Dimensions

Outer Diameter
0.71 in
Overall Length
2.45 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Prop 65
  • No
