Hubbell HBL26521 60 Amp 600 Volt 4-Pole 5-Wire Blue Locking Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26521 | Codale Part # 3475805
$2,365.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Flanged Receptacle, 60A 600V AC, 4-Pole 5-Wire Grounding, Black phenolic interior with steel housing and flange with blue finish, Non NEMA, Screw Terminal, Blue

Technical Information

Amperage
60 Amp
Applications
For Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Screw Terminal
Current
60 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Number of Conductors
5
Number of Phases
Multi Phase
Number of Poles
4-4 Pole
Number of Ports
4
Number of Wires
5,5
Operating Temperature
-40 degrees C
Size
4.12 in x 2.87 in x 4.53 in
Standard
CSA Standard,UL Standard
Tc Connection
Screw Terminal
Type
Standard
Voltage
600 Volt
Wattage
36 kW
Wire Count
5
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017525
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358501752
Weight
2.1 lb

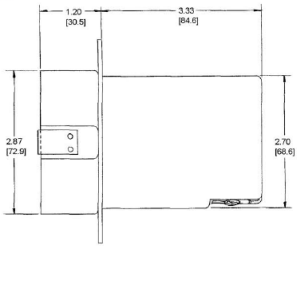

Dimensions

Height
4.53 Inch
Length
4.12 Inch
Width
2.87 in

Certifications and Compliance

Country of Origin
USA
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
  • Metallic housing provides protection from damage in harsh environments
  • Auto Ejects Improperly Made Connection
