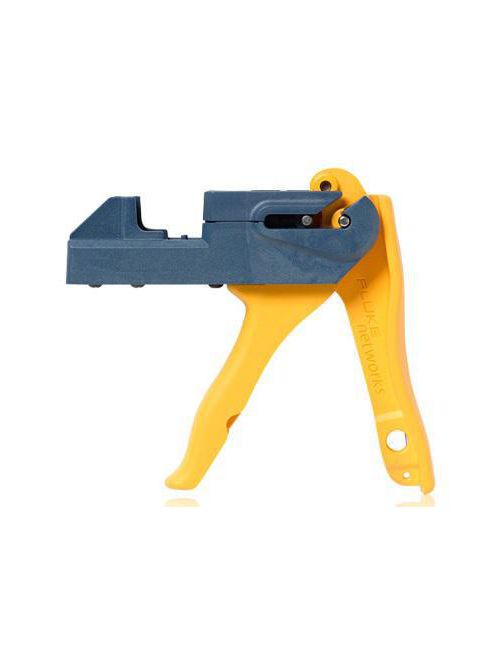

Product image for FLK JR-PAN-2 JACKRAPID TERMINATION
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

FLK JR-PAN-2 JACKRAPID TERMINATION

Manufacturer: Fluke Instruments | Catalog # JR-PAN-2 | Codale Part # 3475963
$159.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
JR-PAN-2,JACKRAPID TERMINATION TOOL (FOR PANDUIT NK688M)

Technical Information

Applications
For Accurate, Clean and Consistent Cuts and Terminations
Handle Type
Ergonomic

Manufacturer Information

Brand
Fluke Corporation
Sub Brand
JackRapid™

General Product Info

12-Digit UPC
754082059264
Product UPC
75408205926
Used With
Leviton 61110, 5G110, 6110G, Panduit NK688M, NKP5E88M
Weight
2.2700 lb
DISK UNSPSC
95120000
Terminate jacks 8 times faster
  • Strip cable jacket. Determine wiring scheme. Dress all 4 pairs (8 wires). Insert jack in JackRapid front first with IDC slots facing blades of JackRapid. Ensure jack is completely and securely inserted in jack holder bed with IDC slots facing the blades. Pull trigger completely and remove excess wire prior to releasing trigger. Wires will be seated and cut for a solid termination. Release handle and remove jack from JackRapid tool. Visually verify proper termination.
  • Strip cable jacket.
  • Determine wiring scheme. Dress all 4 pairs (8 wires).
  • Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.
  • Ensure jack is completely and securely inserted in jack holder bed with IDC slots facing the blades.
  • Pull trigger completely and remove excess wire prior to releasing trigger.
  • Wires will be seated and cut for a solid termination.
  • Release handle and remove jack from JackRapid tool. Visually verify proper termination.
Replaceable blade heads
  • JackRapid blade heads are specific to certain jack types--check the list below to see if JackRapid supports the jacks you use, and if not, look for a new JackRapid version in the future!JackRapid Termination ToolSupports jack models: 41106, 41108 Cat3/5, 5G108 Cat5eJR-LEV-1JackRapid Blade HeadSupports jack models: 41106, 41108 Cat3/5, 5G108 Cat5eJR-LEV-1-HJackRapid Termination ToolSupports jack models: 5G110 Cat 5e, 61110 Cat 6JR-LEV-2JackRapid Blade HeadSupports jack models: 5G110 Cat 5e, 61110 Cat 6JR-LEV-2-HJackRapid Termination ToolSupports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e  JR-SYS-UNI-1JackRapid Blade HeadSupports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e  JR-SYS-UNI-1-HJackRapid Termination ToolSupports jack models: MGS400 Cat 6, MGS500 Cat 6JR-SYS-2JackRapid Blade HeadSupports jack models: MGS400 Cat 6, MGS500 Cat 6JR-SYS-2-HJackRapid Termination ToolSupports jack models: UNJ300 Cat 3, UNJ500 Cat 5e, UNJ600 Cat 6JR-SYS-UNI-1JackRapid Blade HeadSupports jack models: UNJ300 Cat 3, UNJ500 Cat 5e, UNJ600 Cat 6JR-SYS-UNI-HJackRapid Termination ToolSupports jack models: TJ5E00, TJ600, TJ610JR-ORT-2JackRapid Blade HeadSupports jack models: TJ5E00, TJ600, TJ610JR-ORT-2-HJackRapid Termination ToolSupports jack models: KM8, CopperTenJR-ADC-2JackRapid Blade HeadSupports jack models: C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45JR-ADC-2-HJackRapid Termination ToolPanduit JacksSupports jack models: NK688M and NKP5E88MJR-PAN-2JackRapid Blade HeadPanduit JacksSupports jack models: NK688M and NKP5E88MJR-PAN-2-H
  • JackRapid Termination ToolSupports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e
Features
  • Cuts installation time - easy to use handle, seats and cuts all wires at once, saving you up to 1 minute installation time per jack!
  • High quality, consistent terminations - no more compromised connections and wasted jacks
  • Simple, one-handed operation with an ergonomically designed handle reduces hand fatigue
  • Unique design easily accommodates close-to-wall installation
  • Replaceable blade head for use with multiple jack types
