ABB LH75 3/4 INCH NPT BLACK CORD GR

Manufacturer: ABB Thomas & Betts | Catalog # LH75 | Codale Part # 3476296
$720.31/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

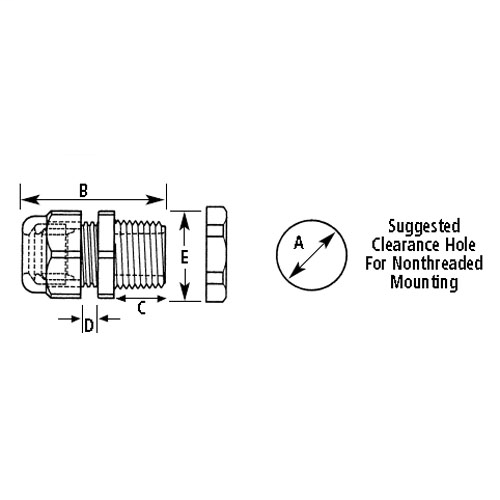

Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/4 Inch, Cable Range 0.450 Inch/11.4mm to 0.709 Inch/18.0mm, Hole Clearance 1.068 Inch/27.1mm, Thread Length 0.63 Inch/16.0mm, IP68 Rating, Nylon, Black

Technical Information

Applications
Suitable for NEMA Type 4 and 6 Enclosures
IP Rating
IP68
Material
Nylon
Operating Temperature
-30 To 100 degrees C
Size
3/4 in
Temperature Rating
-30 To 100 degrees C
Thread Length
16.0 mm
Thread Type
NPT
Trade Size
3/4 Inch
Type
Cord Grips-Straight

Manufacturer Information

Brand
Carlon

General Product Info

12-Digit UPC
034481152880
Box Quantity
400
Color
Black
Product UPC
03448115288
Features
  • New threads on body prevent skipping, faster installation.
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Working temperatures: -22 degrees F (-30 degrees C) to 212 degrees F (100 degrees C). For short periods to 302 degrees F (150 degrees C).
