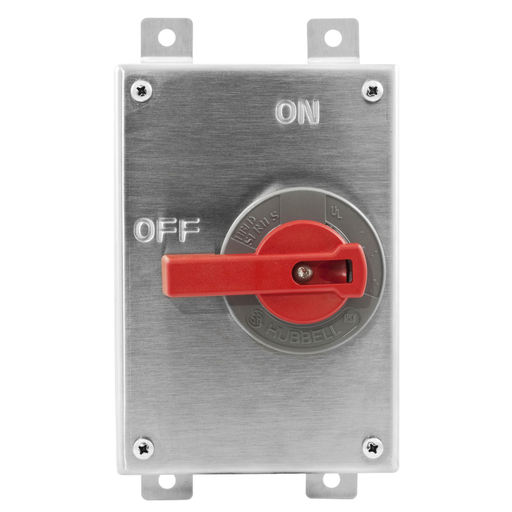

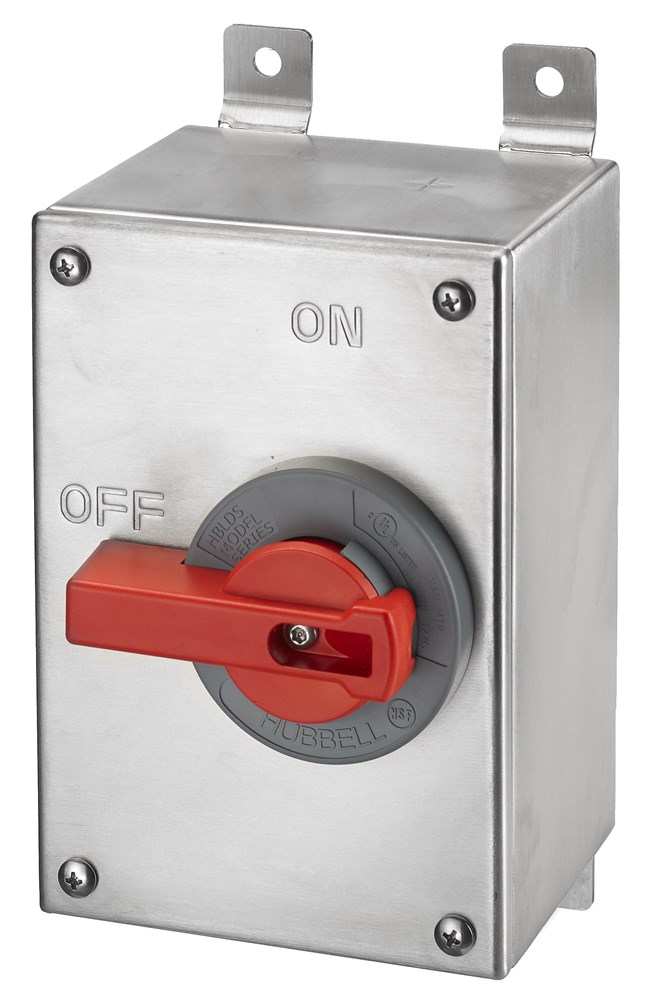

Product image for Hubbell HBLDS3SS 30 Amp 3-Phase 3-Pole NEMA 4X Non-Metallic Unfused Disconnect Switch Enclosure
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Hubbell HBLDS3SS 30 Amp 3-Phase 3-Pole NEMA 4X Non-Metallic Unfused Disconnect Switch Enclosure

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS3SS | Codale Part # 3476604
$1,005.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
Labelless
Connection Type
Screw Terminal
Contact Configuration
Two Position
Contact Rating
30A
Current
30 Amp
Enclosure
Stainless Steel
Load Rating
18000 W
Material
Composite
Mounting Type
Feet
Number of Poles
3 Pole
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
8.38 in x 4.87 in x 5.39 in
Standard
UL
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
2-Position, Industrial Grade, Non-Fusible, Non-Reversing, Standard
Voltage
600 Volt
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock

General Product Info

12-Digit UPC
783585242736
Environmental Conditions
UL94 5VA and V0 Flammability Rating
Housing Material
Stainless Steel
Product Series
Non,Fused,MotorQuick/LINKOSITY
Product UPC
78358524273
Shape
Square Top
Weight
5.3100 lb

Dimensions

Height
5.39 Inch
Length
8.38 Inch
Width
4.87 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Formed in nonporous 304 stainless steel
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications
  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Accepts up to 2 Auxiliary contacts
