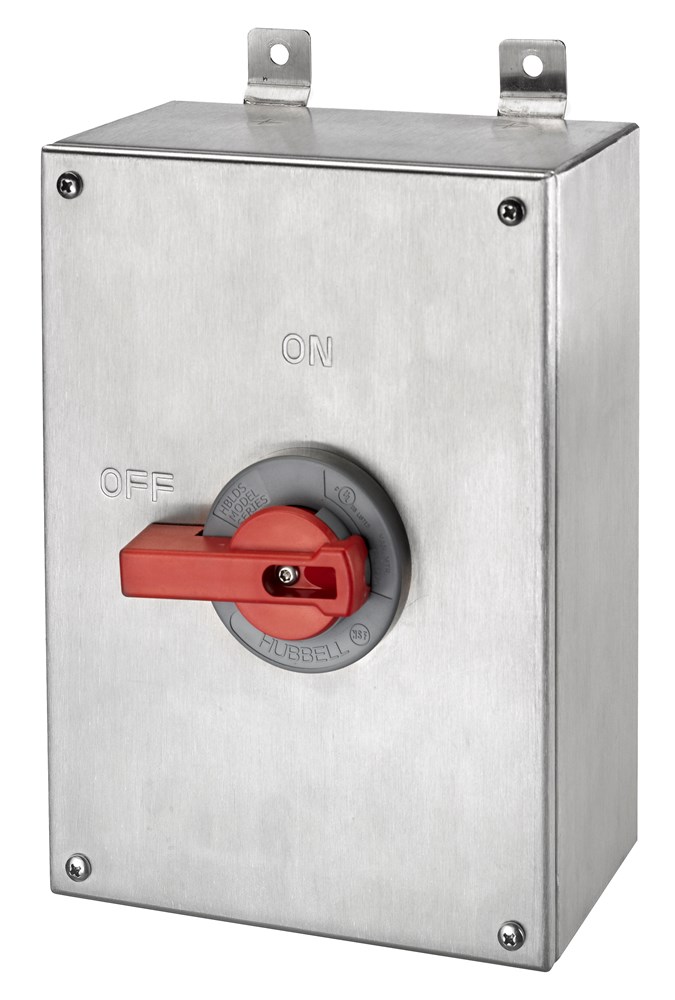

Product image for Hubbell HBLDS6SSDISCONNECT, 60A UNFUSED, 4X, SS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBLDS6SSDISCONNECT, 60A UNFUSED, 4X, SS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS6SS | Codale Part # 3476605
$1,406.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure

Technical Information

Action
Snap
Actuator
Lever
Amperage
60 Amp
Applications
Labelless
Contact Configuration
Two Position
Contact Rating
60A
Current
60 Amp
Enclosure
Type 4X, IP69k
Material
Composite
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
-40 degrees C
Size
11.63 in x 7.3 in x 5.39 in
Style
Heavy Duty
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
600 Volt
Wattage
36 kW

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Circuit-Lock

General Product Info

12-Digit UPC
783585372563
Environmental Conditions
NEMA 4X
Product Series
Non-Fused
Product UPC
78358537256
Shape
Square Top
Weight
10.3500 lb

Dimensions

Height
5.39 Inch
Length
11.63 Inch
Width
7.3 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Formed in nonporous 304 stainless steel
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications
  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Accepts up to 2 Auxiliary contacts
