Burndy PATMD66LI INLINE WITH D3 GRV ON

Manufacturer: Hubbell-Burndy | Catalog # PATMD66LI | Codale Part # 3478262
$3,441.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet

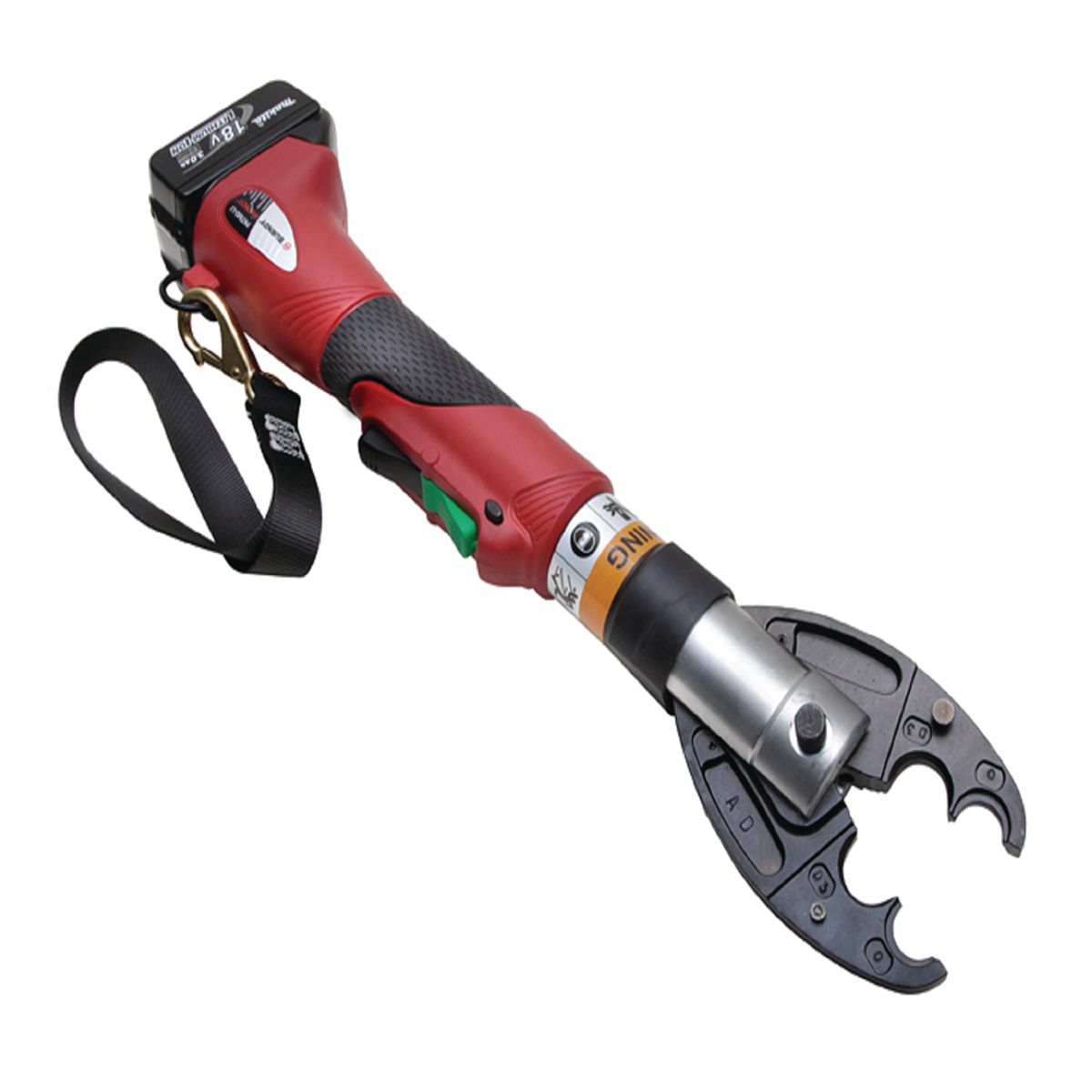

Wire lug crimping tool, 6 Tons, Ergonomically Balanced Tool

Technical Information

Applications
For Use On: Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld, 6201, 5005, Compressed, and Compact conductors, Copper Taps: #10 solid - 2/0 stranded, Aluminum and ACSR Taps: #14 solid - 4/0 ACSR, Stirrups: #6 - 4/0 ACSR, Overhead Full Tension Deadends, Full Tension Splices and Terminals #10 Str. - 4/0 ACSR, Installs splices, taps or terminations:#8 - 500 kcmil Copper Str. (YA, YA-L, YS, YS-L),#8 - 350 kcmil flex,#8 - 350 kcmil Aluminum (YA-A & YS-A)
Battery Type
Ni-MH
Type
Crimpers

Manufacturer Information

Brand
Burndy
Sub Brand
PATRIOT® IN-LINE® CRIMPER

General Product Info

12-Digit UPC
781810529263
Product UPC
78181052926
Weight
7.3 lb

Dimensions

Height
4-1/4 Inch
Length
20.4 Inch
Overall Length
20.4 in
Warranty Length
1 yr
Width
2.8 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Advance design high speed pump completes a crimp in approximately 2 seconds
  • Pressure \"pop-off\" valve indicated completion of crimp
  • Features: Refined hydraulic system for ultra performance, speed and reliability, Field proven electronics - ultimate reliability in the harshest environments, Advance design high speed pump completes a crimp in approximately 2 seconds, True one-handed operation for advance, retract and hold, 6-ton output force for reliable compression connections, Pressure pop-off valve indicates completion of crimp, Interchangeable scissor action crimp jaws allow easier access to tight spaces, Ram holds position when trigger is released to allow the operator to check alignment prior to crimping, Uses standard BURNDY W and X dies already in use, Large hand grip area allows easier operation with gloves, Ergonomically balanced tool design helps lessen operator fatgue, Durable high impact formed carrying case, High capacity 2.6 AH Ni-MH batteries provide more crimps per charge, 3-year limited warranty on tool, Lifetime warranty on INFINITY DRIVE, 1-year warranty on batteries and charger5 year limited warranty,Lifetime warranty on INFINITY DRIVE®, 3 year on batteries and charger
  • Interchangeable scissor-action crimp jaws allow for easier access
  • Uses standard \"W\" and \"X\" BURNDY® dies already in use
  • Large hand grip area allows for easier operation with gloves
