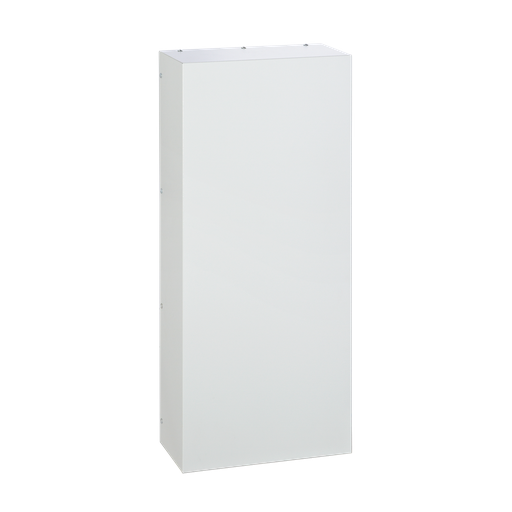

Product image for Hoffman WCHE06926002 CLIMAGUARD Air-to-Water Indoor, 3100W, 230V, Type 12
Image thumbnail 0
Image thumbnail 1
Email

Hoffman WCHE06926002 CLIMAGUARD Air-to-Water Indoor, 3100W, 230V, Type 12

Manufacturer: nVent Hoffman | Catalog # WCHE06926002 | Codale Part # 3478706
$4,281.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Air-to-Water Indoor Heat Exchanger removes heat from an enclosure by flowing enclosure hot air across a water-cooled exchanger core. Inside cabinet temperatures can range from 10-50 C (50-122 F) while ambient operating temperatures can range from 10-70 C (50-158 F). Includes a condensation recovery system and condensation discharge pipe. These units require an available cooled water source.

Technical Information

Amperage
1 Amp
Applications
For Industrial Process Controls, Industrial Robotics Controls, Electronic Cabinets in Harsh Environments, Conveyor Systems
Color Coding
RAL 7035
Control Type
Mechanical Thermostat
Material
Steel
Max Current
1 A
Max Temperature
122 degrees F
Min Temperature
50 degrees F
Operating Temperature
50-122
Standard
CE,EAC (230V Models Only),IP55/IP54 (reference Item Technical Data),UL/cUL Listed; Type 12; File No. SA33866
Tc Connection
Power Cord
Temperature Rating
50 - 122 degrees F
Type
Heat Exchangers
Voltage
200-250 Volt
Wattage
3100 Watt at 25 C

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ClimaGuard™

General Product Info

12-Digit UPC
783510256159
Color
RAL 7035 Light Gray
Finish
Powder Coated
Housing Material
Mild Steel
Product UPC
78351025615
Weight
54.5 lb

Dimensions

Depth
8.07 Inch
Height
36.41 Inch
Length
17 Inch
Thickness
1.21 mm
Width
15.75 in
DISK UNSPSC
40101701
Features
  • Filterless, refrigerant-less design
  • NEMA power cord connection standard
  • Copper pipe and aluminum fins heat exchanger core
  • Air movers with thermal protection
  • Regulating mechanical thermostat set at 35 C (95 F), differential of 4 C (7 F)
  • Solenoid water valve
