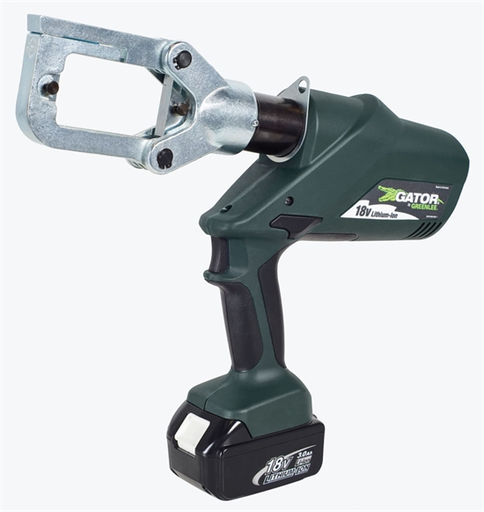

GREENLEE ECCXL120 CRIMP TOOL GATOR PRO-1

Manufacturer: Greenlee | Catalog # ECCXL120 | Codale Part # 3478912
$11,061.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
6-Ton Tool w/120 VAC Adapter

Technical Information

Battery Type
18V Lithium-Ion
Crimping Force
12000 lb
Standard
C/US UL Listed
Type
Battery Powered

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310101390
Product UPC
78331010139
Weight
14.000 lb

Dimensions

Overall Length
16-1/2 in
Description
  • Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Tools automatically retract when the crimping or cutting cycle is complete
  • Use optional CCX blades and adapters
  • LED light provides the operator with the battery charge and tool maintenance status
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • U.S. Patent #6,206,663, #6,532,790
  • Crimping head rotates 350°
  • 6-Ton tools: When used with Greenlee KC22 and KA22 diesin combination with Anderson,Blackburn, FCI Burndy, ILSCO,Panduit, Penn-Union and Thomas & Betts color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy, Kearney, Blackburn, Panduit and Thomas & Betts dies used for 6-ton tools. They can drive knockout punchesup through 2 IN diameters:
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • One trigger controls all tool functions
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
