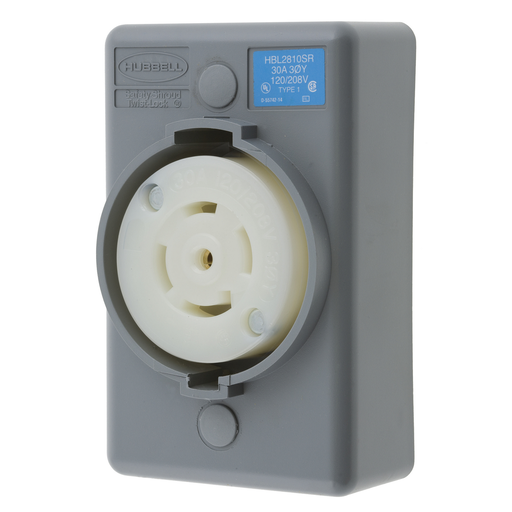

Product image for HCI HBL2810SR LKG S/SHRD RCPT, L21-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HCI HBL2810SR LKG S/SHRD RCPT, L21-

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2810SR | Codale Part # 3479424
$138.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®,Safety-Shroud® Receptacle, 30A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-30R, RPT surface mounting, one gang, Gray

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L21-30R
Number of Gangs
1 Gang
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass,Steel, Zinc Plated
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
1-Gang
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585235066
Color
Gray/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Housing Material
Impact Modified PBT
Product UPC
78358523506
Weight
0.5 lb

Dimensions

Height
1.71 Inch
Length
4.56 Inch
Width
2.84 in

Certifications and Compliance

Country of Origin
USA
Features
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Surface Mount
