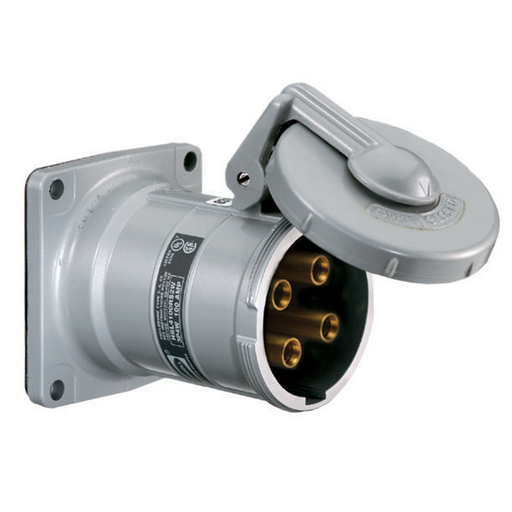

Hubbell HBL360RS1WR PS, INS, Receptacle, 2P3W, 60A 600V, S1 REV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 61MDW | Codale Part # 3480304
$580.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 600V AC, 2- Pole 3-Wire Grounding Style 1, Terminal Screws Gray and Black

Technical Information

Amperage
60 Amp
Applications
High Ampacity Connections
Conductor Size
8-2 AWG
Current
60 Amp
Grounding
Style 1
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Reversed Service,Style 1 Grounding
Tc Connection
Pressure Screw Terminals
Type
Single Flanged-Reversed
Voltage
250 Volt
Wattage
36000 Watt
Wire Count
3
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
800838510036
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
80083851003
Weight
2.05 lb

Dimensions

Height
5 Inch
Length
6.8 Inch
Width
5.400 in

Certifications and Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
