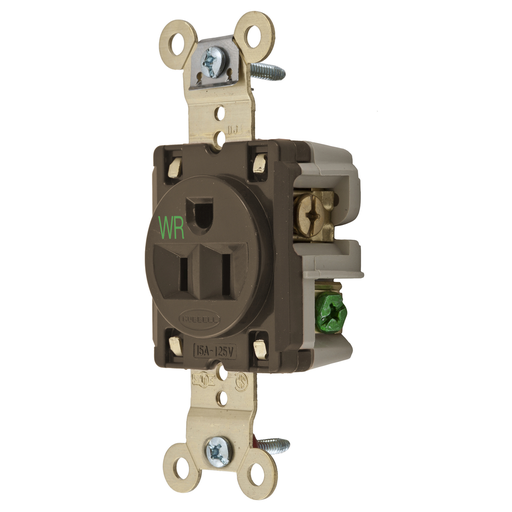

Hubbell HBL5261WR WR Receptacle, SING, SB, HD, 15A 125V, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5261WR | Codale Part # 3481144
$46.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Single, Industrial Grade, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
For Heavy Duty Applications
Base Material
Reinforced PET
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Extra Heavy-Duty
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rating
125 V
Screw Material
#8-32 Brass/Nickel Plated,Steel, Zinc Plated
Size
Standard
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Screw, 6 Terminals
Type
Weather Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585320618
Color
Brown
Environmental Conditions
Weatherproofing Accessory
Product Series
Extra Heavy Duty
Product UPC
78358532061
Weight
0.2 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Certifications
C22.2,Certified To CSA,Guide RTRT Fed Spec WC596G,Meets WD-6 Requirements,No. 42 File 285.,UL Listed To UL 498 File E2186
Country of Origin
Puerto Rico
Features
  • Weather-resistance complies with national electrical code requirements
  • Back wired ground terminal allows faster, easier installation
  • Finder Groove Face
  • Weather Resistant
