HWDK HBL1557LW MOM TOG, 20A, 120/27

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1557LW | Codale Part # 3481149
$106.58/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off , 20A 120/277V AC, Terminal Screws White Key Guide

Technical Information

Action
SPDT
Actuator
Double Ended Key
Amperage
20 Amp
Applications
Back and Side Wired
Base Material
Thermoset
Conductor Size
14-10 AWG
Contact Configuration
Momentary
Contact Material
Silver Alloy
Contact Rating
Full Rated
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Industrial
Indicator
Dot Indicates On
Lock Type
Non-Cylindrical
Material
Thermoset,Thermoset
Max Current
20 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Screw Material
Brass

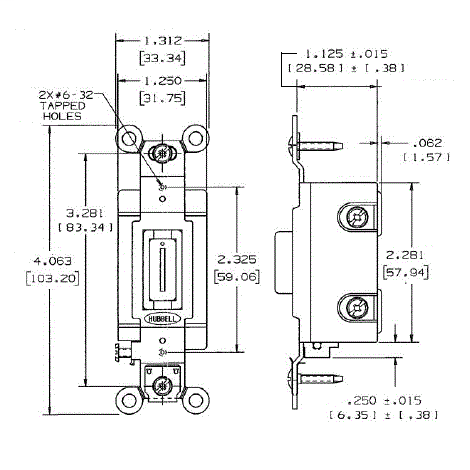

Size
4.06 in x 1.31 in x 1.89 in
Style
Single Pole Double Throw
Tc Connection
Terminal Screws
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Type
Non-Reversing
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585188737
Color
White
Product Series
Extra Heavy Duty
Product UPC
78358518873
Weight
0.2000 lb

Dimensions

Height
1.89 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Strip gauge for accurate wiring
  • Momentary Contact
