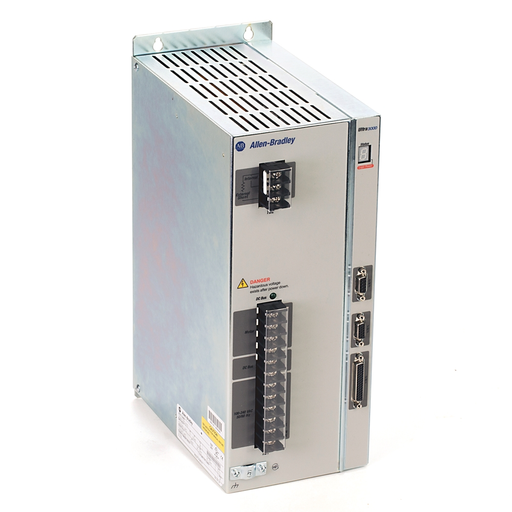

Allen-Bradley 2098-DSD-075 Ultra 3000 Servo Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 2098-DSD-075 | Codale Part # 3481601
$5,531.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ultra 3000 7.5kW Servo Drive

Technical Information

Input Current
30 A
Input Voltage
100 - 240 VAC
Output Current
24.7 A
Power Rating
7.5 kW at 230 VAC
Standard
CE,KC
Temperature Rating
55 degrees C
Type
Digital
Voltage
115-230 Volt
Wattage
7.5 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Ultra 3000

General Product Info

12-Digit UPC
662453934440
Product UPC
66245393444
Weight
24.8800 lb
Features
  • Field-programmable flash memory firmware storage
  • One serial port for RS-232 or RS-485 communications
  • The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
  • Uses standard high-density D-Shell connectors
  • Four selectable general purpose outputs and relay output
  • Eight selectable general purpose inputs
  • Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
