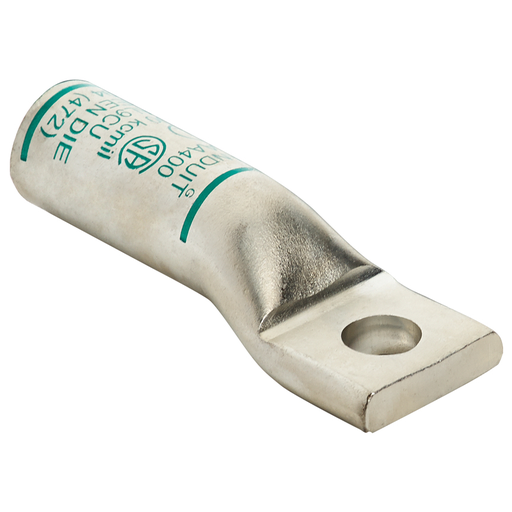

Panduit LAA500-12-2 Pan-Lug™ Aluminum 1 Hole Compression Lug

Manufacturer: PANDUIT | Catalog # LAA500-12-2 | Codale Part # 3481938
$15,291.43/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LAA500-12-2 Aluminum Compression Connector Lug, one-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
3 in
Base Material
Aluminum
Cable Size
AWG
Color Coding
Pink
Material
Aluminum
Number of Holes
1 Hole
Size
500 kcmil Code
Stud Size
0.5 in
Tongue Thickness
0.45 in
Tongue Type
Standard
Tongue Width
1.74 in
Type
Compression Terminal Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
2

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983910649
Color
Fresh Pink Lemonade
Product UPC
07498391064
UNSPSC
39121405
Weight
0.0105 lb

Dimensions

Outer Diameter
1.32 in
Overall Length
5.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: CSA Certified, UL Listed 486A-486B File #E52166
Prop 65
  • No
