Panduit FSD74-6-D 24 AWG Single Wire Insulated Ferrule

Manufacturer: Panduit | Catalog # FSD74-6-D | Codale Part # 3483971
$536.13/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

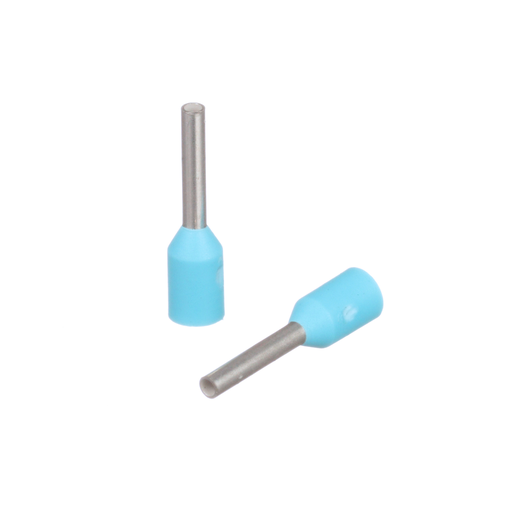

The single wire DIN end sleeve insulated ferrule in turquoise has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #24-22 (0.34mm²) wire ferrules and supports a maximum wire insulated diameter of 0.07 (2.0mm). The insulated ferrule is 0.41 (10.5 mm) long and has a wire strip length of 0.375 (9.5mm). It comes in standard packages of 500.

Technical Information

Color Coding
NA
Conductor Size
22 AWG
Material
Copper
Max Operating Temperature
105 degrees C
Standard
IEC 60947; EN 60947; UL Listed; CSA Certified; DIN VDE 0600
Temperature Rating
221 degrees F
Type
Covered Single Wire Ferrule
Wire Size
0.34 mm

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983763979
Color
Turquoise
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498376397
UNSPSC
39121409
Weight
0.0001 lb

Dimensions

Overall Length
0.49 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Germany

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: DIN 46228 Part 4, CSA C22.2 No. 291-14
