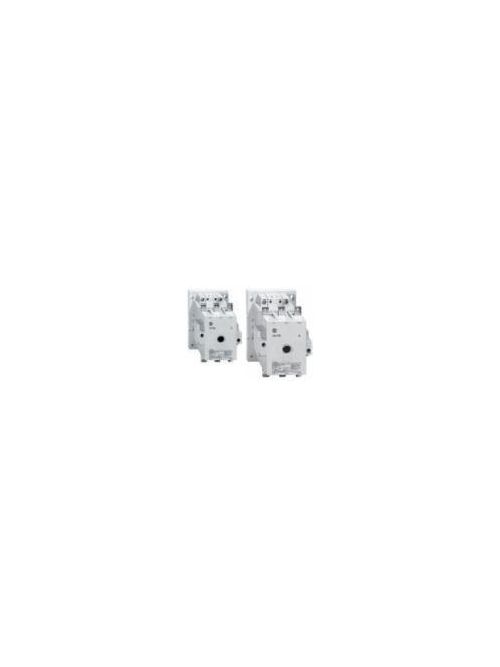

Product image for Allen Bradley 104-D115D24 115 A MCS D Reversing Contactor
Email

Allen Bradley 104-D115D24 115 A MCS D Reversing Contactor

Manufacturer: Allen Bradley / Rockwell | Catalog # 104-D115D24 | Codale Part # 3487114
$2,190.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
115 A MCS D Reversing Contactor

Technical Information

Amperage
115 Amp
Coil Voltage
110 VAC at 50 Hz, 120 VAC 60 Hz
Conductor Size
6 AWG-300 kcmil
Contact Configuration
2 NO, 4 NC Auxiliary
Current
115 Amp
Mounting Type
Panel
Number of Phases
3 Phase
Number of Poles
3 Pole
Power Rating
37 kW at 230 V, 64/66 kW at 400/415 V, 80 kW at 500 V, 111 kW at 690 V, 63 kW at 1000 V
Temperature Rating
-25 to 60 degrees C
Type
Reversing

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
885630187983
Environmental Conditions
-40 to 80 C Storage Temperature
Product UPC
88563018798
Weight
23.5600 lb
Features
  • Available integrated PLC interface
  • Includes reversible coil terminations (line or load side)
  • Provides reversible coil terminations (line or load side)
  • Includes built-in surge suppression
  • Includes space-saving coil-mounted control modules
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Complies with RoHs
  • RoHs compliant
  • Meets IEC, UL, and CSA standards requirements
  • Simplifies selection with electronic wide-range AC/DC coils
  • Offers common accessories for all contactor sizes
  • Saves energy with low power consumption
  • Provides IP2X finger protection
  • Includes built-in surge suppression
  • Meets IEC, UL, and CSA standards requirements
  • Includes electronic and pneumatic timing modules
  • Provides front and side mounting of auxiliary contacts
