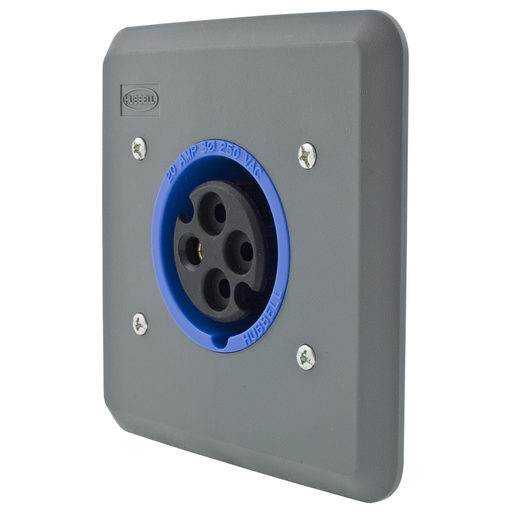

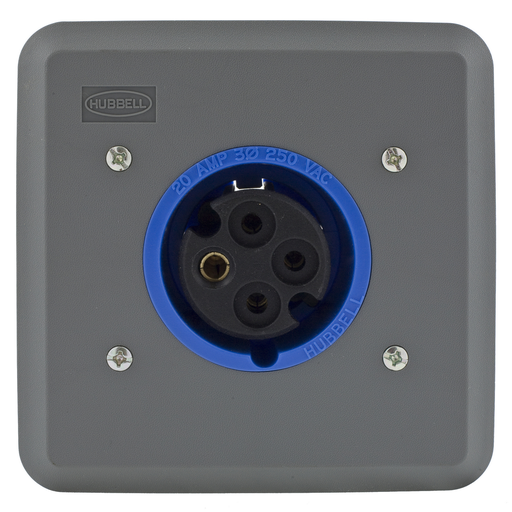

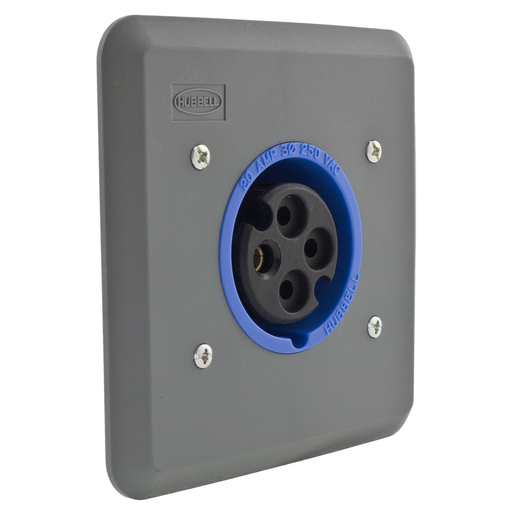

Hubbell L420R9 PS, IEC, REPL, 3P4W, 20A 3P 250V, LO-PRO

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # L420R9 | Codale Part # 3491289
$220.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue

Technical Information

Amperage
20 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
14-10 AWG
Current
20 Amp
Material
Thermoplastic
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Type
IP22 Receptacle
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
IEC 309 Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585507743
Color
Blue
Environmental Conditions
Watertight
Product Series
Low Profile
Product UPC
78358550774
Weight
0.95 lb

Dimensions

Height
3.62 Inch
Length
5-1/2 Inch
Width
4.620 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Split sleeves with self-adjusting stainless steel springs
  • Color coding for easy identification of mating devices
  • Stainless steel terminal screws resist rust and corrosion
  • Standard
