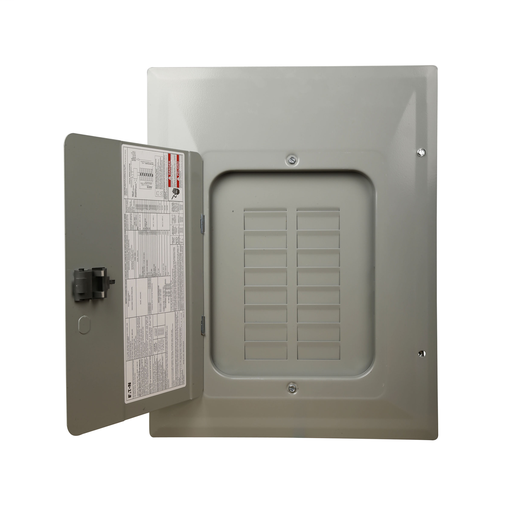

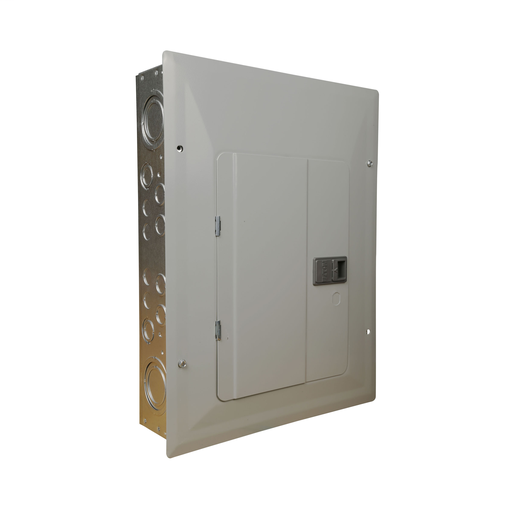

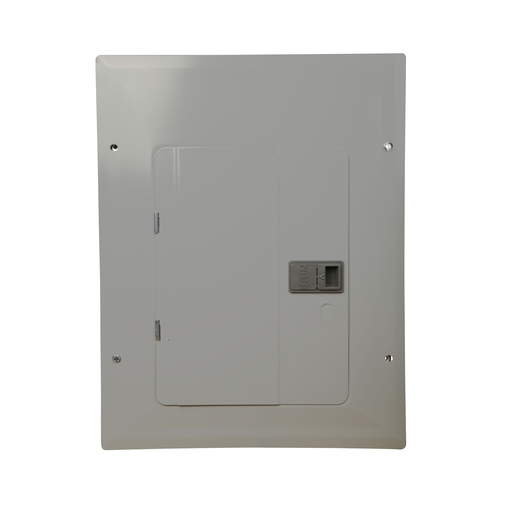

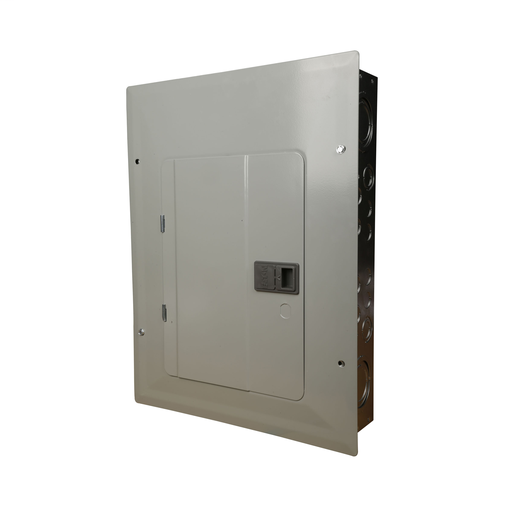

Eaton Electrical BR1624L125G 120/240 VAC 125 Amp 16-24 Circuit 1-Phase 3-Wire 1 Inch Main Lug Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # BR1624L125G | Codale Part # 349197
$144.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
BR style 1-inch loadcenter, main lug, ground bar, includes BREQS125 hold-down screw, 125A, single-phase, 24-pole, 24 circuits, 16 spaces, 120/240V, #6-2/0 AWG Cu/Al at 60.C or 75.C wire, NEMA 1 enclosure, b2 box size

Technical Information

Amperage
125 Amp
Bus Material
Aluminum
Circuit Breaker Type
BR
Conductor Size
6-2/0 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
10 kAIC
Mounting Type
Combination
NEMA Size
1
Number of Circuits
24
Number of Phases
1 Phase
Number of Spaces
16
Number of Wires
3 Wire
Size
B2
Standard
UL 50,UL 50,UL 67,UL 67
Type
Main Lug
Voltage
120/240 Volt
Wire Size
6-00 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676446808
Product UPC
78667644680
Weight
17.8300 lb

Dimensions

Height
18-3/4 Inch
Length
3.88 Inch
Width
14.31 in
Certifications
  • UL 50
  • UL 67
Warranties
  • 10 year
