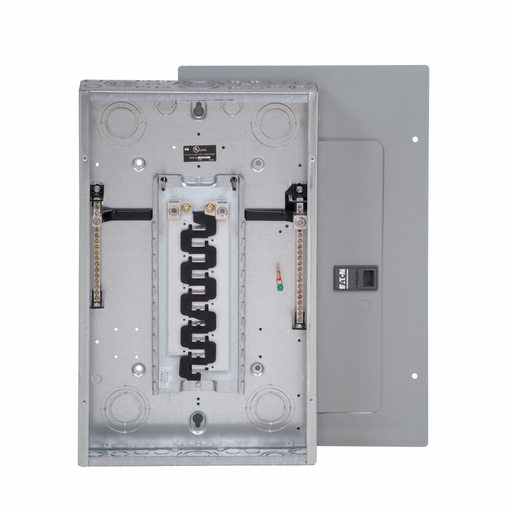

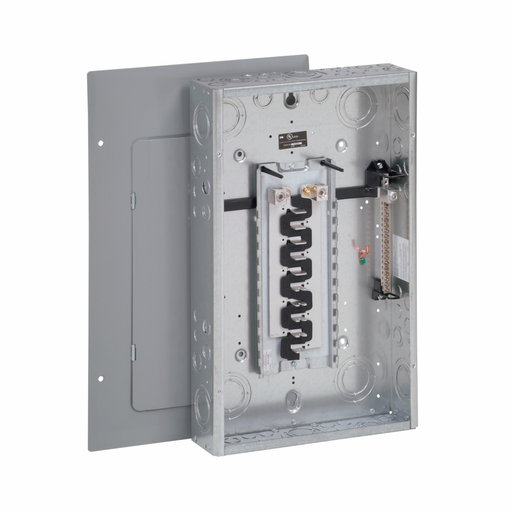

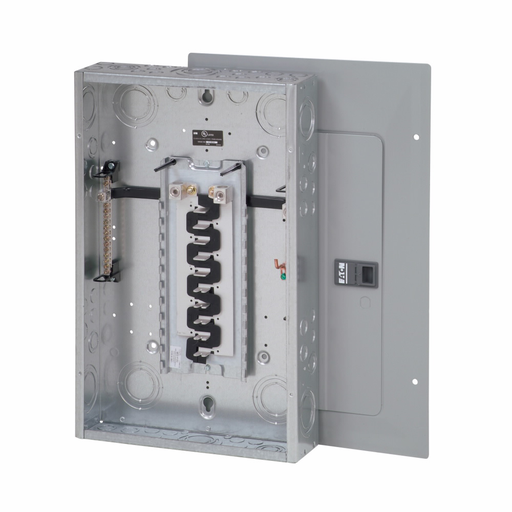

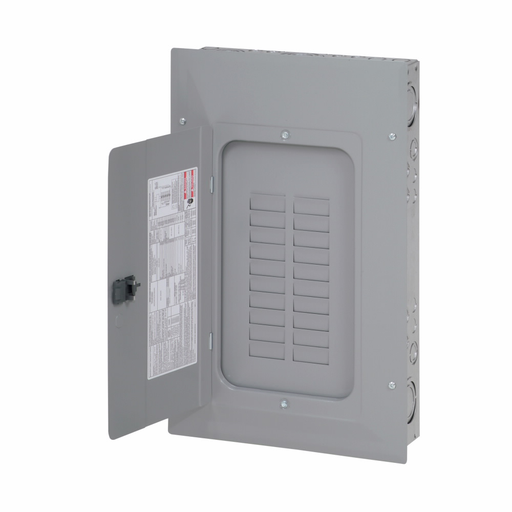

Eaton Electrical BR2030L150 120/240 VAC 150 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # BR2030L150 | Codale Part # 349198
$305.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Eaton BR style 1-inch loadcenter, main lug, no feed-thru lugs, includes BREQS125 hold-down screw, 150A, single-phase, 30-pole, 30 circuits, 20 spaces, 120/240V, #1-300 kcmil Cu/Al at 60.C or 75.C wire, NEMA 1 enclosure, c2 box size

Technical Information

Amperage
150 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Bus Material
Aluminum
Conductor Size
1 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
25 kAIC
Mounting Type
Combination
Number of Circuits
30
Number of Phases
1 Phase
Number of Spaces
20
Number of Wires
3 Wire
Size
C2
Type
Main Lug
Voltage
120/240 Volt
Wire Size
300 kcmil

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676447201
Product UPC
78667644720
Weight
24 lb

Dimensions

Height
3.9 Inch
Length
23.1 Inch
