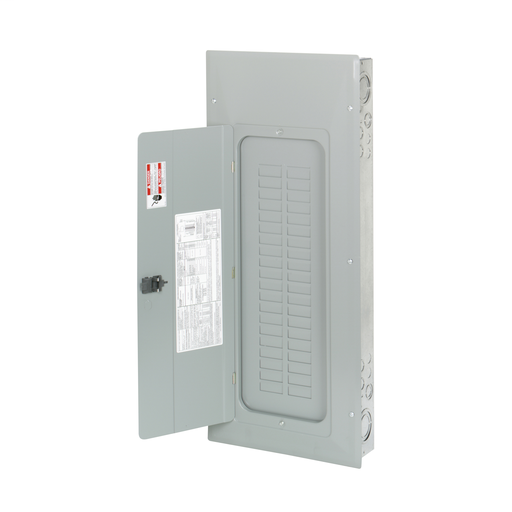

Product image for Eaton Electrical BR4040L200 120/240 VAC 200 Amp 40/40 Circuit 1-Phase 3-Wire 1 Inch Main Lug Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Eaton Electrical BR4040L200 120/240 VAC 200 Amp 40/40 Circuit 1-Phase 3-Wire 1 Inch Main Lug Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # BR4040L200 | Codale Part # 349201
$384.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
BR style 1-inch loadcenter, main lug, no feed-thru lugs, 200A, single-phase, 40-pole, 40 circuits, 40 spaces, 120/240V, #1-300 kcmil Cu/Al at 60.C or 75.C, NEMA 1 enclosure, g1 box size

Technical Information

Amperage
200 Amp
Bus Material
Aluminum
Conductor Size
1 AWG-300 kcmil
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
25 kAIC
Mounting Type
Combination
NEMA Size
1
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
40
Number of Wires
3 Wire
Size
G1
Standard
UL 50,UL 50,UL 67,UL 67
Type
Main Lug
Voltage
120/240 Volt
Wire Size
1 AWG-300 kcmil

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676447751
Product UPC
78667644775
Weight
34 lb

Dimensions

Height
34.13 Inch
Length
3.88 Inch
Width
14.31 in
Certifications
  • UL 67
  • UL 50
Warranties
  • 10 year
