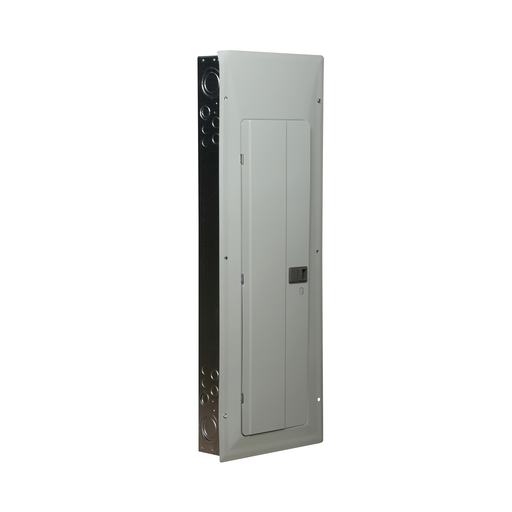

Image thumbnail 2
Image thumbnail 3

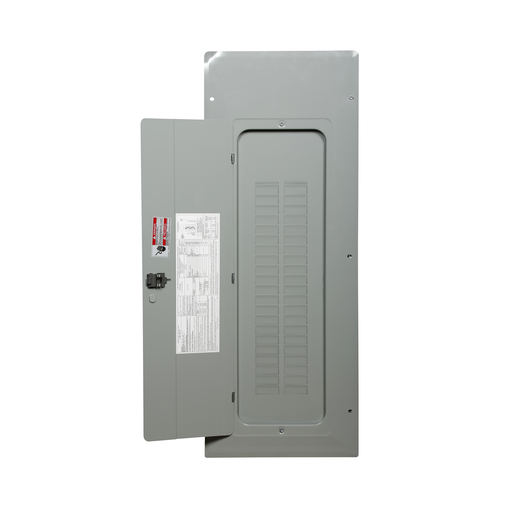

Image thumbnail 4

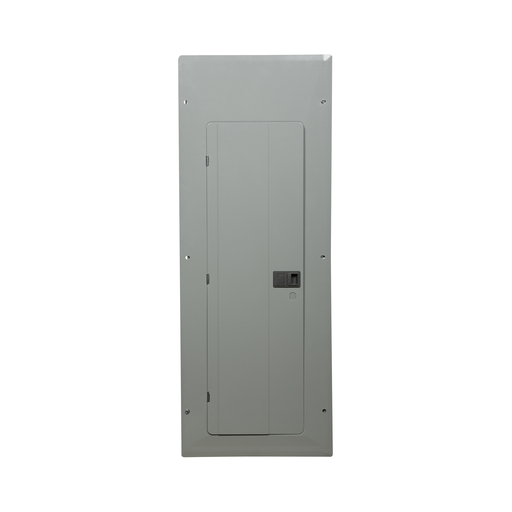

Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Eaton Electrical 3BR4242L225 208 Star/120/240 VAC 225 Amp 3-Phase 4-Wire 1 Inch Main Lug Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # 3BR4242L225 | Codale Part # 349964
$939.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
BR style 1-inch commercial loadcenter, main lug, no feed-thru lugs, 225A, three-phase, 42 circuits, 42 spaces, 208Y/120 or 240V, #1-300 kcmil Cu/Al at 60.C or 75.C wire

Technical Information

Amperage
225 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Bus Material
Aluminum
Circuit Breaker Type
BWH
Conductor Size
1 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
25 kAIC
Mounting Type
Combination
NEMA Size
1
Number of Circuits
42
Number of Phases
3 Phase
Number of Spaces
42
Number of Wires
4 Wire
Size
L1
Type
Main Lug
Voltage
240 Volt
Wire Size
1 AWG

Manufacturer Information

Brand
Cutler-Hammer Manufacturing Co.

General Product Info

12-Digit UPC
786676442756
Product UPC
78667644275
Weight
36.8 lb

Dimensions

Height
45 Inch
Length
3.88 Inch
Width
14.31 in
