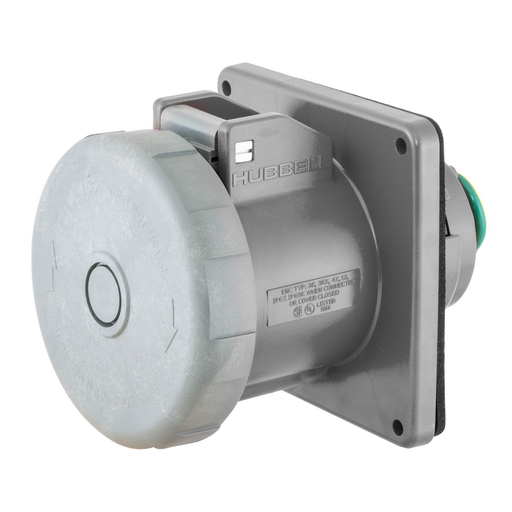

Image thumbnail 2
Image thumbnail 4
Email

Hubbell M5100B9R Marine PSB, 4P5W, 100A 120/208V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M5100B9R | Codale Part # 3499753
$1,829.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Flanged Inlet, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Technical Information

Amperage
100 Amp
Applications
Marine Wiring Devices
Conductor Size
3-1/0 AWG
Current
100 Amp
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
5,5
Rating
100 A
Size
Standard Sized Product
Standard
CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Style
Reverse Service
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Watertight Inlet
Voltage
120/208 Volt
Wattage
20800 Watt
Wire Count
5
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
IEC 309 Pin and Sleeve

General Product Info

12-Digit UPC
783585510019
Color
Gray
Environmental Conditions
Watertight
Product Series
Corrosion Resistant
Product UPC
78358551001
Weight
3.5 lb

Dimensions

Height
5-3/4 Inch
Length
7 Inch
Width
6.5 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin
