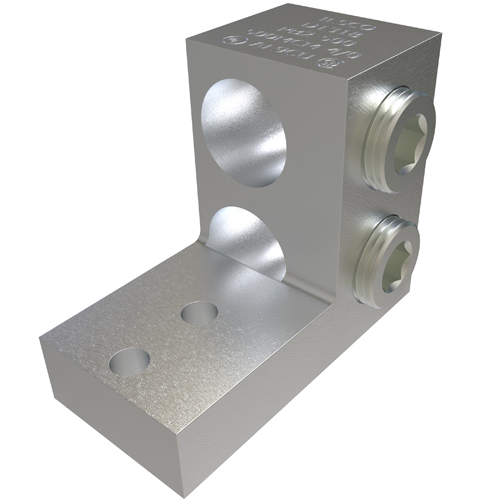

Product image for Ilsco PB2-500 Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco PB2-500 Aluminum Panelboard Lug, Dual Rated, Conductor Range 500-4/0, 2 Ports, 2 Holes, 1/4in Bolt Size, 11/16in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PB2-500 | Codale Part # 3500870
$58.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Panelboard Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 0.688 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4/0 Str, 2 conductors, 2 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Panelboard Lug
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.281 in
Number of Conductors
2
Number of Holes
2 Hole
Number of Ports
2
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PB:PANELBOARD STACK LUG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669184266
Color
Silver
Finish
Tin Plated
Product UPC
78366918426
Weight
0.402 lb

Dimensions

Height
2-3/8 Inch
Length
2.96 Inch
Width
1.438 in
