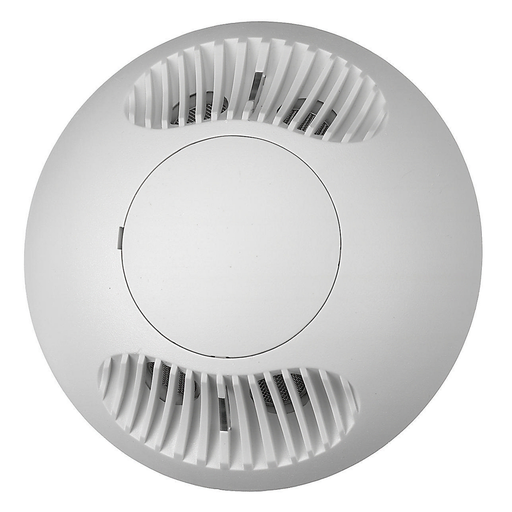

Hubbell ATU2000CL OCCSENS, US, CLNG, LN, VOLTAGE, 2000 SQ FT

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATU2000CL | Codale Part # 3501415
$459.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Occupancy/Vacancy Sensors, Ceiling Switch Adaptive Dual Technology, 2 Circuit, 120/277V AC, Office White

Technical Information

Amperage
20 Amp
Applications
Compatible with most LED and CFL
Current
20 Amp
Frequency
50/60 Hz
Material
ABS Plastic
Mounting Type
Ceiling Mount
Operating Temperature
11 degrees C
Sensing Range
2000 Square Feet
Standard
ASHRAE 90.1,CULus,UL244A
Style
Ceiling Mount
Type
Non-Reversing
Voltage
120/277 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
H-MOSS

General Product Info

12-Digit UPC
783585256924
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Ultrasonic
Product UPC
78358525692
Weight
0.5000 lb

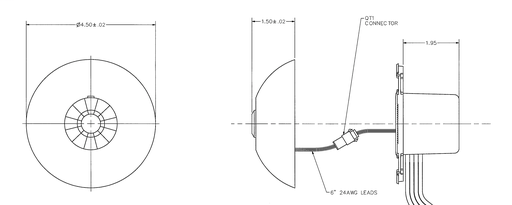

Dimensions

Height
3.4 Inch
Length
4.4 Inch
Width
4.9 in

Certifications and Compliance

Country of Origin
China
Features
  • Coverage 2000 sq. ft. (360°), line voltage sensor
  • Excellent minor motion detection
  • Self-contained power supply with high load relay
  • Directly mounts to 4\" octagon boxes, 2.125\" deep
  • Digital, crystal controlled ultrasonic transmitter and receiver for coverage in each direction for superior sensing of movement
  • Office White ABS enclosure blends with ceiling tile
  • Green LED indicates ultrasonic detection
