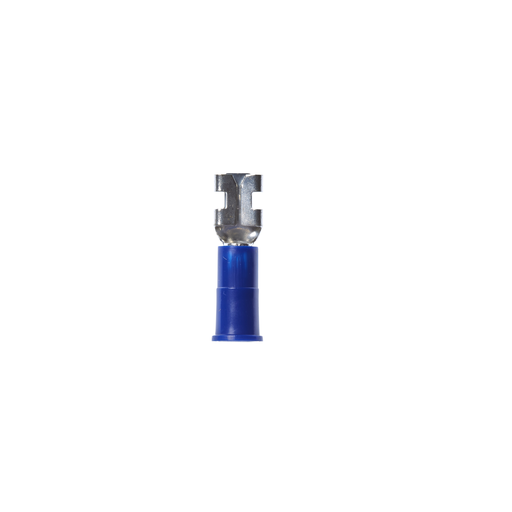

Product image for 3M FDV14-250Q 25/Bag Vinyl Insulated Female Disconnect
Image thumbnail 0
Image thumbnail 1
Email

3M FDV14-250Q 25/Bag Vinyl Insulated Female Disconnect

Manufacturer: 3M | Catalog # 7000133663 | Codale Part # 3501594
$17.44/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
This female disconnect accepts a wire range of 16-14 AWG, a .250 stud size and has a case quantity of 10 bags.

Technical Information

Barrel Diameter
0.08 in
Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
14 AWG
Insulation Material
Vinyl
Material
PVC
Max Voltage
1000 V
Standard
CSA,E2186,UL
Tc Connection
4-pin DC Micro,4 Pin Micro Quick Disconnect
Terminal Style
Standard
Terminal Type
Standard
Type
E1 Plus Solid State Relay
Wire Size
16-14 AWG

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600061
Color
Blue
Product UPC
05112860006

Dimensions

Length
0.87 Inch
Overall Length
0.87 in
Pad Width
0.25 in
Thickness
0.032 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
