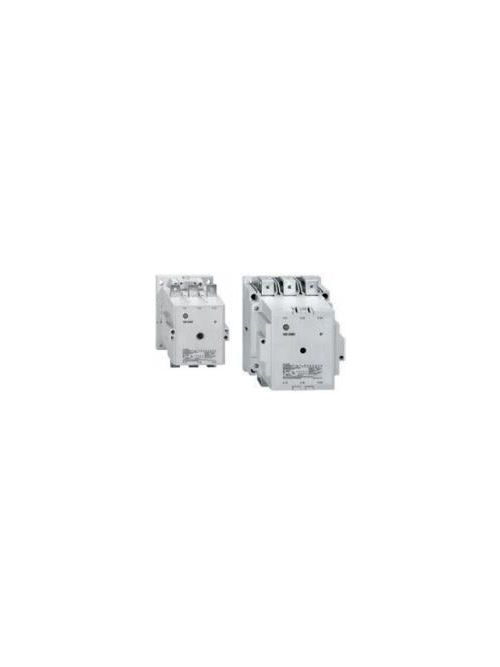

Product image for Allen-Bradley 104-D420ED24 420 Amp Reversing Contactor
Email

Allen-Bradley 104-D420ED24 420 Amp Reversing Contactor

Manufacturer: Allen Bradley / Rockwell | Catalog # 104-D420ED24 | Codale Part # 3502095
$12,100.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
420 A MCS D Reversing Contactor

Technical Information

Amperage
420 Amp
Coil Voltage
110 - 130 VAC at 50/60 Hz
Conductor Size
4 AWG-350 kcmil
Contact Configuration
2 NO, 4 NC Auxiliary
Control Voltage
110/130 V
Current
420 Amp
Number of Phases
3 Phase
Number of Poles
3 Pole
Power Rating
132 kW at 230 V, 238 kW at 400 V, 250 kW at 415 V, 420 kW at 500 V, 425 kW at 690 V, 220 kW at 1000 V, 150 kW at 200 V
Temperature Rating
-25 to 60 degrees C
Type
Reversing
Voltage
600 Volt

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
781180821394
Environmental Conditions
-40 to 80 C Storage, IEC 60068-2-27 Resistance to Shock, IEC 60068-2-6 Resistance to Vibration, 2000 NN Per IEC 60947-4 Maximum Altitude Of Installation Site, IEC 60068-2-30 Climatic Withstand
Product UPC
78118082139
Weight
8.6000 lb
Features
  • Includes reversible coil terminations (line or load side)
  • Meets IEC, UL, and CSA standards requirements
  • Provides reversible coil terminations (line or load side)
  • Available integrated PLC interface
  • Includes space-saving coil-mounted control modules
  • Offers common accessories for all contactor sizes
  • Includes built-in surge suppression
  • Complies with RoHs
  • Includes built-in surge suppression
  • Provides front and side mounting of auxiliary contacts
  • RoHs compliant
  • Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
  • Saves energy with low power consumption
  • Includes electronic and pneumatic timing modules
  • Provides IP2X finger protection
  • Simplifies selection with electronic wide-range AC/DC coils
  • Meets IEC, UL, and CSA standards requirements
